2006 Saleen S7 Twin-Turbo Competition
09-14-2006, 07:41 AM
#1
GTcars - Post God !
Thread Starter
iTrader: (1)
Join Date: Mar 2005
Location: Toronto East
Posts: 3,516
Rep Power: 0

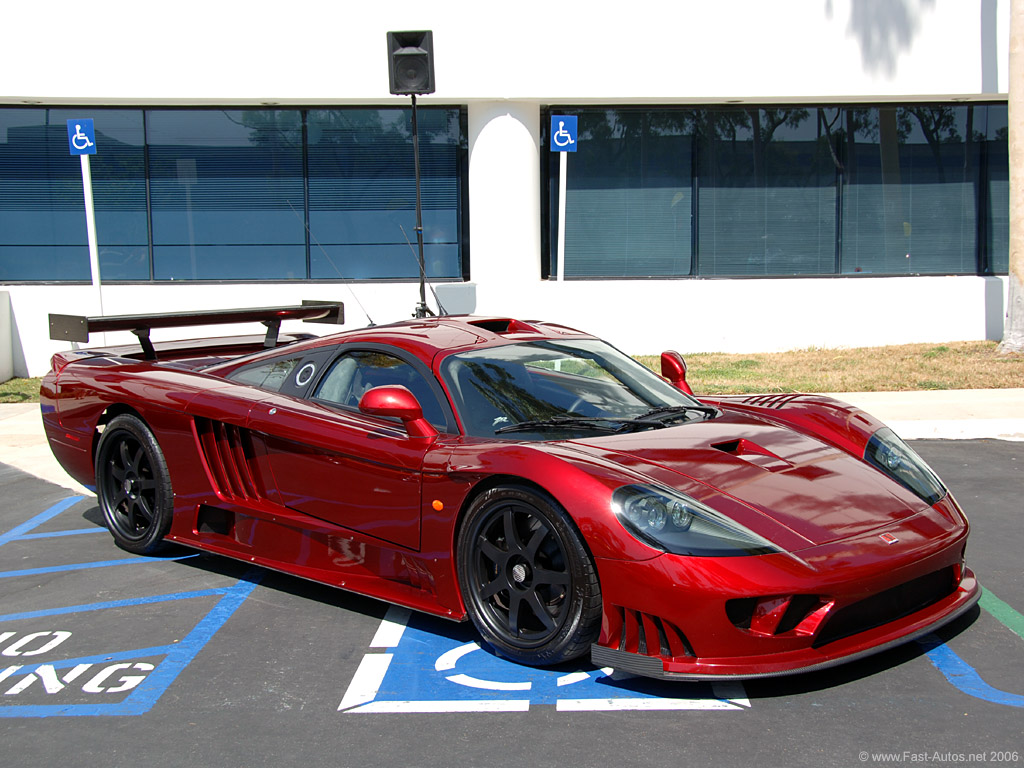

2006 Saleen S7 Twin-Turbo Competition
General Information
Vehicle Type: 2-door coupe, production car
Drivetrain
Configuration: Mid Engine/RWD
Engine: Twin-Turbo V8
Displacement: 7000 cc
Horsepower: 1000 bhp
Max RPM: 6500 rpm
Transmission: 6-Speed Manual
Dimensions
Weight: 2950 lbs
Height: 41.0 in
Length: 188.0 in
Width: 78.3 in
Wheelbase: 106.3 in
Performance
0-60 mph: 2.6 sec
Top Speed: 250 mph

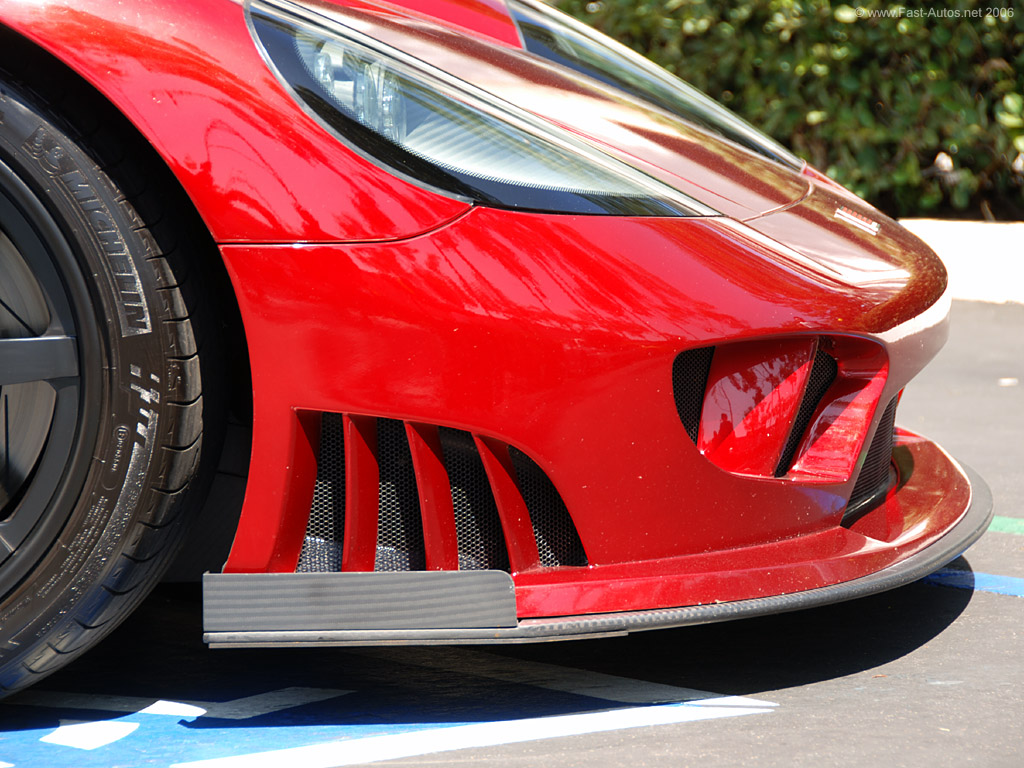

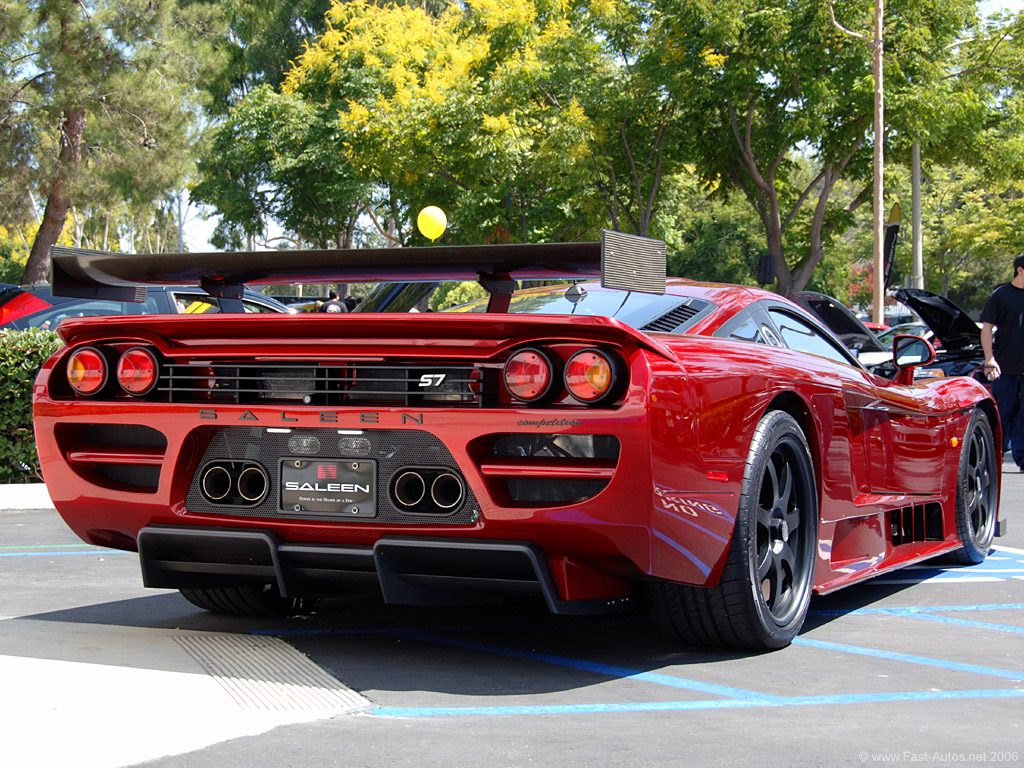

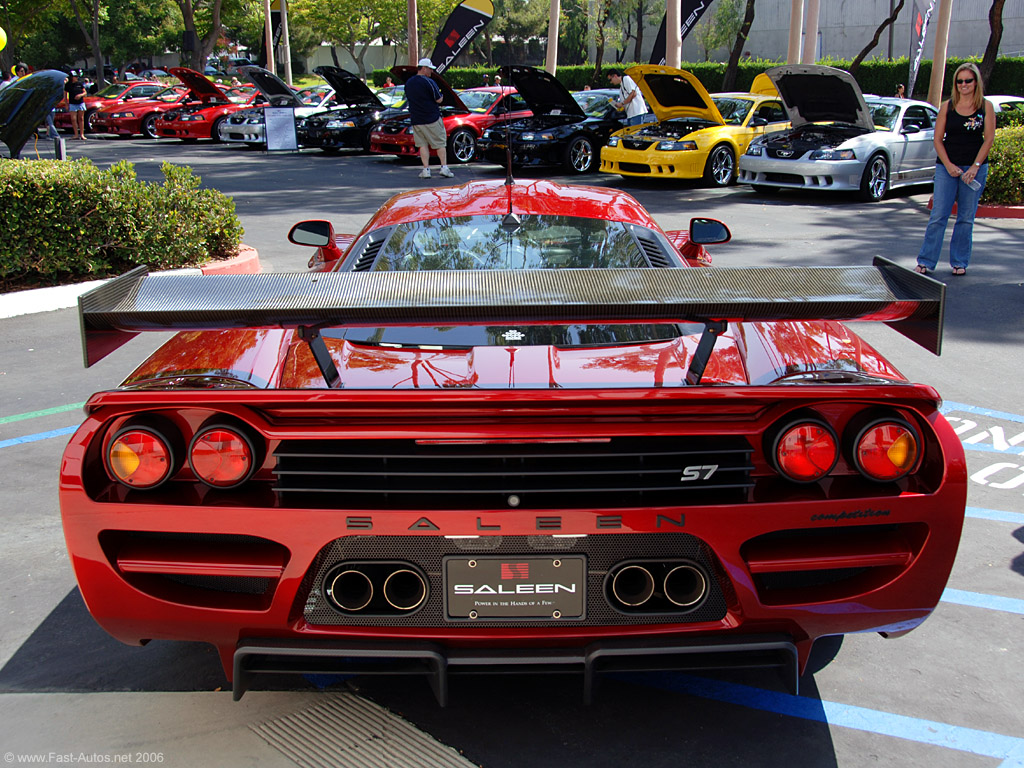

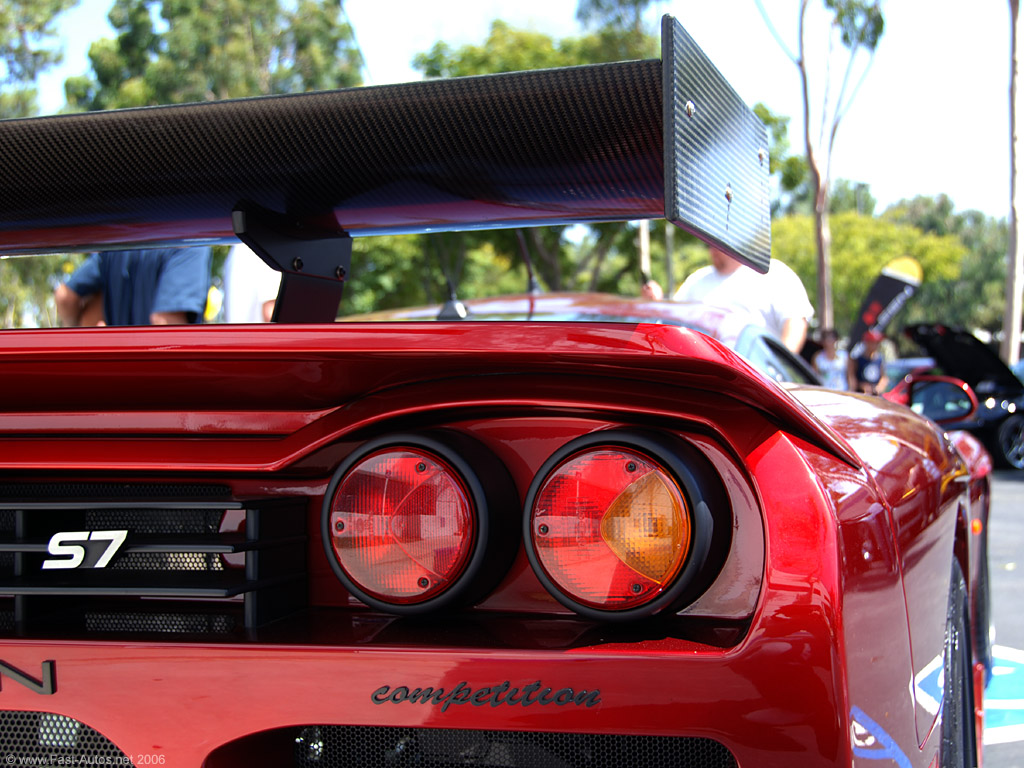

The competition package is a new option from Saleen that builds on the 750 bhp S7, producing an astounding 1000 bhp. The package is the latest evolution of the S7 supercar that first started production in 2001. The twin-turbo model was released in 2005 and also included changes to the suspenion and exterior design. The extra horsepower comes from increasing the boost of the twin-turbo system developed by Saleen. Also available is an aerodynamic package that includes a carbon fiber rear wing and front splitter.
Engine & Drivetrain
The all-aluminum V8 engine casting was engineered and tooled by Saleen to displace seven liters. Space age materials and engineering are used throughout, including stainless steel valves, titanium retainers, beryllium exhaust valve seats, an aluminum throttle body, Saleen-designed aluminum CNC-machined cylinder heads and stainless steel exhaust system. The V8 incorporates a unique Saleen-designed side-mounted water pump, a belt-driven camshaft drive and a Saleen-engineered dry sump oil delivery system.
The engine's mid-chassis placement optimizes weight distribution and makes room for an unusually tall engine that allows for a very efficient induction system. Air enters a roof intake, passes through a 90-mm mass air meter and feeds into a carbon fiber plenum. From the plenum the air is routed to the twin ball bearing turbos, is pressurized to 5.5 psi max and then passes through an oval-bore throttle body into an aluminum intake manifold with eight individual runners.
To feed juice to this setup, the injection system includes dual electric fuel pumps and high-capacity, return-less, 52 lb/hr fuel injectors. Neatly engineered and integrated into the S7's stainless steel, dual, high-flow exhaust system are two, twin-ball-bearing, water-cooled Saleen-Garrett turbos, featuring 44-mm wastegates. The four exhaust pipes from each bank of cylinders merge into a race-car-like high-efficiency collector. In addition, the exhaust incorporates dual catalysts per cylinder bank, EGR and those aforementioned twin wastegates.
Chassis, Suspension, and Brakes
A major improvement in ride over previous models is achieved with the use of coil springs that are a dual-stage design. The first spring has a lower rate than the single springs fitted to the current S7, resulting in softer ride during normal street driving. But if you remember your history, you know that the S7 is a flat-bottom, downforce car. The faster you go, the more downforce the S7 develops. In the case of the S7's new dual-stage springs, the second stiffer spring starts coming into play at around 100 mph when the car begins to develop serious downforce.

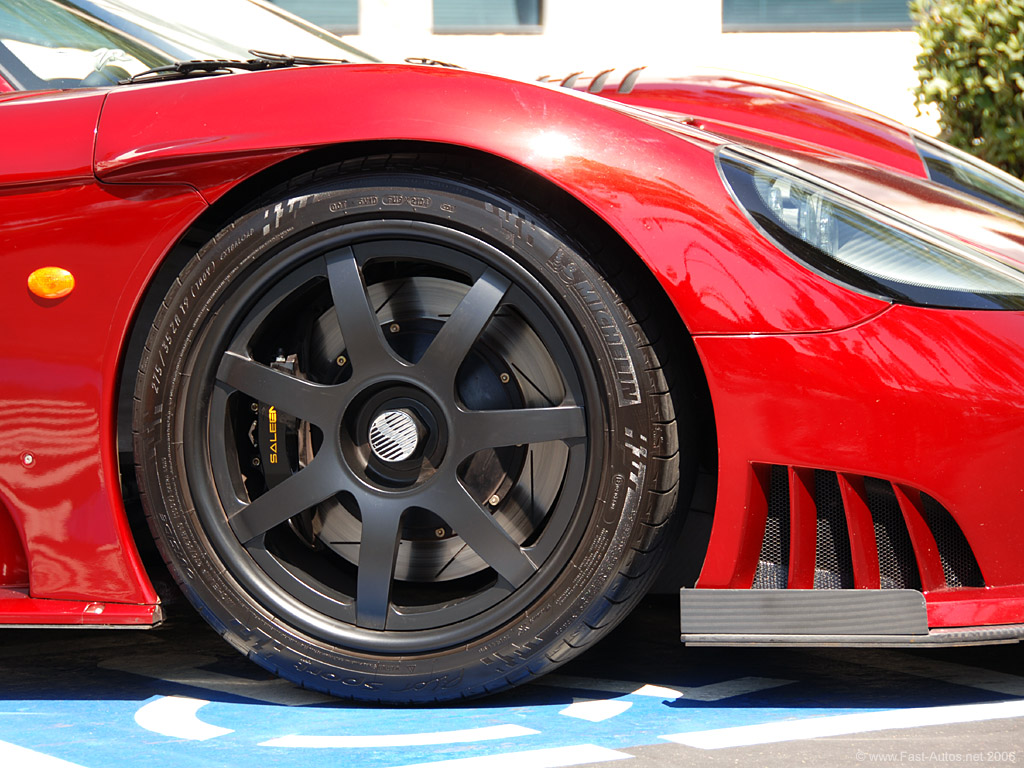

Chassis tuning also includes revised shock valving front and rear. Saleen-engineered Brembo-supplied lightweight aluminum six-piston mono-block calipers are fitted front and rear. The brakes are among the largest of any production car with 15-inch vented discs up front and 14-inch vented discs at the rear.
Vehicle Type: 2-door coupe, production car
Drivetrain
Configuration: Mid Engine/RWD
Engine: Twin-Turbo V8
Displacement: 7000 cc
Horsepower: 1000 bhp
Max RPM: 6500 rpm
Transmission: 6-Speed Manual
Dimensions
Weight: 2950 lbs
Height: 41.0 in
Length: 188.0 in
Width: 78.3 in
Wheelbase: 106.3 in
Performance
0-60 mph: 2.6 sec
Top Speed: 250 mph
The competition package is a new option from Saleen that builds on the 750 bhp S7, producing an astounding 1000 bhp. The package is the latest evolution of the S7 supercar that first started production in 2001. The twin-turbo model was released in 2005 and also included changes to the suspenion and exterior design. The extra horsepower comes from increasing the boost of the twin-turbo system developed by Saleen. Also available is an aerodynamic package that includes a carbon fiber rear wing and front splitter.
Engine & Drivetrain
The all-aluminum V8 engine casting was engineered and tooled by Saleen to displace seven liters. Space age materials and engineering are used throughout, including stainless steel valves, titanium retainers, beryllium exhaust valve seats, an aluminum throttle body, Saleen-designed aluminum CNC-machined cylinder heads and stainless steel exhaust system. The V8 incorporates a unique Saleen-designed side-mounted water pump, a belt-driven camshaft drive and a Saleen-engineered dry sump oil delivery system.
The engine's mid-chassis placement optimizes weight distribution and makes room for an unusually tall engine that allows for a very efficient induction system. Air enters a roof intake, passes through a 90-mm mass air meter and feeds into a carbon fiber plenum. From the plenum the air is routed to the twin ball bearing turbos, is pressurized to 5.5 psi max and then passes through an oval-bore throttle body into an aluminum intake manifold with eight individual runners.
To feed juice to this setup, the injection system includes dual electric fuel pumps and high-capacity, return-less, 52 lb/hr fuel injectors. Neatly engineered and integrated into the S7's stainless steel, dual, high-flow exhaust system are two, twin-ball-bearing, water-cooled Saleen-Garrett turbos, featuring 44-mm wastegates. The four exhaust pipes from each bank of cylinders merge into a race-car-like high-efficiency collector. In addition, the exhaust incorporates dual catalysts per cylinder bank, EGR and those aforementioned twin wastegates.
Chassis, Suspension, and Brakes
A major improvement in ride over previous models is achieved with the use of coil springs that are a dual-stage design. The first spring has a lower rate than the single springs fitted to the current S7, resulting in softer ride during normal street driving. But if you remember your history, you know that the S7 is a flat-bottom, downforce car. The faster you go, the more downforce the S7 develops. In the case of the S7's new dual-stage springs, the second stiffer spring starts coming into play at around 100 mph when the car begins to develop serious downforce.
Chassis tuning also includes revised shock valving front and rear. Saleen-engineered Brembo-supplied lightweight aluminum six-piston mono-block calipers are fitted front and rear. The brakes are among the largest of any production car with 15-inch vented discs up front and 14-inch vented discs at the rear.
09-15-2006, 09:59 AM
#6
Junior GTcars Poster
Join Date: Jul 2006
Location: Mississauga
Posts: 264
Rep Power: 657
I love this car, absolutely love it to death.
To bad Europeans will never give this car respect and will never call it a Supercar.
However that Top Speed, I'd like to see that, thats awfully close to the Veyron, and that 0-60 time too.
and did I read Dual Cats for each cylinder bank, wait, so does that mean that car has 4 Catylist converters?
at least it has Exhaust Gas Recirculation for the Turbos.
To bad Europeans will never give this car respect and will never call it a Supercar.
However that Top Speed, I'd like to see that, thats awfully close to the Veyron, and that 0-60 time too.
and did I read Dual Cats for each cylinder bank, wait, so does that mean that car has 4 Catylist converters?
at least it has Exhaust Gas Recirculation for the Turbos.
