2007 Ruf CTR-3
General Information
Vehicle Type: 2-door coupe, modified car
Price: $510,000
Drivetrain
Configuration: Rear Engine/RWD
Engine: Twin-Turbo Flat-6
Displacement: 3800 cc
Horsepower: 700 bhp @ 7000 rpm
Torque: 657 lb-ft
Transmission: 6-Speed Sequential
Dimensions
Weight: 3252 lbs
Height: 47.2 in
Length: 175.0 in
Width: 76.5 in
Performance
0-60 mph: 3.2 sec
Top Speed: 235 mph
Exactly 20 years after the original CTR, German tuning house RUF has announced the introduction of its third generation CTR3 coinciding with the launch of its new plant in Bahrain. The latest version will be one of the fastest Porsches on offer when it's released.
RUF has utilized racing technologies first seen on its 911-based RT12 offering. Powering the CTR3 is a twin-turbo 3.8-liter flat six engine pumping out 700 bhp at 7,000 rpm with torque topping out at 657 lb-ft. To save weight its developers added several unique body panels made from lightweight carbon-fiber as well as a new lattice tubing spaceframe. Drive is sent to the wheels via a six-speed sequential manual gearbox that allows the CTR3 to hit 60 mph in 3.2 seconds and reach a top speed of 235 mph. Braking is done through 15-inch discs and 6-piston calipers front and rear.
When the original CTR was released in 1987, it out-performed many of the supercars of its era including cars like the Ferrari F40, Lamborghini Countach and even Porsche's own 959. The CTR3 is set to do the same but won"t come cheap as pricing is expected to fall at just over $500,000.
Body
Body build in steel, aluminium and kevlar-carbon. Rollover protection in A-pillar and in birdcage. The birdcage forms a torsion resistant unit with the front chassis by joining to the sill beam and the A pillar.
Front structure steel, zinc dipped
Safety passenger compartment steel, zinc dipped

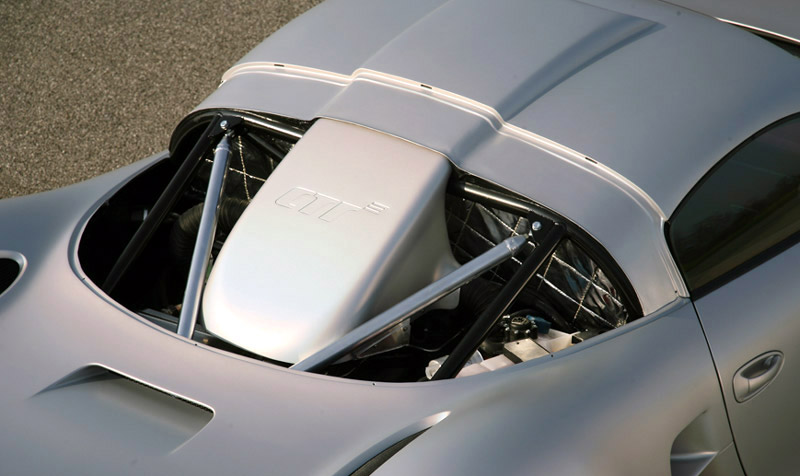

Engine and transmission frame space frame and birdcage
Front bonnet and doors aluminium
Body shell Kevlar-Carbon composite
Engine
Type turbocharged boxer
Cylinders 6
Displacement 3,746 cc / 228.6 in3
Bore 102 mm / 4.01 in
Stroke 76.4 mm / 3.01 in
Output 515 kW (700 hp) at 7,000 rpm
Max. torque 890 Nm / 656.5 lb-ft
Compression ratio 9.2 : 1
Engine control unit Bosch Motronic with OBD-2
Turbo charger two KKK turbo chargers
Intercooler two air-air-intercoolers
Transmission
Power delivery rear wheel drive
Transmission sequential 6-speed-manual transmission,
transversal, angle drive, shift indicator in the instrument panel
Limited slip differential multi-disc locking differential
Locking value load / deceleration 40 % / 60 %
Chassis
Front axle McPherson struts, anti-roll bar
Rear axle multilink rear axle, anti-roll bar
horizontal coil over shock absorbers
Steering Power assisted rack and pinion
Brakes
Brake callipers front/rear 6 piston fixed light alloy callipers
Brake discs front/rear ventilated and cross drilled
ceramic composite discs
Brake disc diameter front/rear 380 mm / 15 in / 380 mm / 15 in
Anti-lock braking system Bosch ABS 8.0
Wheels and Tires
Wheels front/rear 8.5 x 19 / 12.5 x 20
Tires front/ rear 255/35 ZR 19 / 335/30 ZR 20
Size and Dimensions
Length 4,445 mm / 175.0 in
Width 1,944 mm / 76.5 in
Height 1,200 mm / 47.2 in
Wheelbase 2,625 mm / 103.3 in
Front track 1,506 mm / 59.3 in
Rear track 1,585 mm / 62.4 in
Empty weight with 6 speed manual transmission
According to DIN 1,400 kg / 3,086.4 lbs
According to EG-standards 1,475 kg / 3,251.8 lbs
Performance
Top speed 375 kph / 235 mph
0-100 kph / 0 62 mph 3.2 sec
Price
Euro 380,000.00 (plus VAT)
Vehicle Type: 2-door coupe, modified car
Price: $510,000
Drivetrain
Configuration: Rear Engine/RWD
Engine: Twin-Turbo Flat-6
Displacement: 3800 cc
Horsepower: 700 bhp @ 7000 rpm
Torque: 657 lb-ft
Transmission: 6-Speed Sequential
Dimensions
Weight: 3252 lbs
Height: 47.2 in
Length: 175.0 in
Width: 76.5 in
Performance
0-60 mph: 3.2 sec
Top Speed: 235 mph
Exactly 20 years after the original CTR, German tuning house RUF has announced the introduction of its third generation CTR3 coinciding with the launch of its new plant in Bahrain. The latest version will be one of the fastest Porsches on offer when it's released.
RUF has utilized racing technologies first seen on its 911-based RT12 offering. Powering the CTR3 is a twin-turbo 3.8-liter flat six engine pumping out 700 bhp at 7,000 rpm with torque topping out at 657 lb-ft. To save weight its developers added several unique body panels made from lightweight carbon-fiber as well as a new lattice tubing spaceframe. Drive is sent to the wheels via a six-speed sequential manual gearbox that allows the CTR3 to hit 60 mph in 3.2 seconds and reach a top speed of 235 mph. Braking is done through 15-inch discs and 6-piston calipers front and rear.
When the original CTR was released in 1987, it out-performed many of the supercars of its era including cars like the Ferrari F40, Lamborghini Countach and even Porsche's own 959. The CTR3 is set to do the same but won"t come cheap as pricing is expected to fall at just over $500,000.
Body
Body build in steel, aluminium and kevlar-carbon. Rollover protection in A-pillar and in birdcage. The birdcage forms a torsion resistant unit with the front chassis by joining to the sill beam and the A pillar.
Front structure steel, zinc dipped
Safety passenger compartment steel, zinc dipped
Engine and transmission frame space frame and birdcage
Front bonnet and doors aluminium
Body shell Kevlar-Carbon composite
Engine
Type turbocharged boxer
Cylinders 6
Displacement 3,746 cc / 228.6 in3
Bore 102 mm / 4.01 in
Stroke 76.4 mm / 3.01 in
Output 515 kW (700 hp) at 7,000 rpm
Max. torque 890 Nm / 656.5 lb-ft
Compression ratio 9.2 : 1
Engine control unit Bosch Motronic with OBD-2
Turbo charger two KKK turbo chargers
Intercooler two air-air-intercoolers
Transmission
Power delivery rear wheel drive
Transmission sequential 6-speed-manual transmission,
transversal, angle drive, shift indicator in the instrument panel
Limited slip differential multi-disc locking differential
Locking value load / deceleration 40 % / 60 %
Chassis
Front axle McPherson struts, anti-roll bar
Rear axle multilink rear axle, anti-roll bar
horizontal coil over shock absorbers
Steering Power assisted rack and pinion
Brakes
Brake callipers front/rear 6 piston fixed light alloy callipers
Brake discs front/rear ventilated and cross drilled
ceramic composite discs
Brake disc diameter front/rear 380 mm / 15 in / 380 mm / 15 in
Anti-lock braking system Bosch ABS 8.0
Wheels and Tires
Wheels front/rear 8.5 x 19 / 12.5 x 20
Tires front/ rear 255/35 ZR 19 / 335/30 ZR 20
Size and Dimensions
Length 4,445 mm / 175.0 in
Width 1,944 mm / 76.5 in
Height 1,200 mm / 47.2 in
Wheelbase 2,625 mm / 103.3 in
Front track 1,506 mm / 59.3 in
Rear track 1,585 mm / 62.4 in
Empty weight with 6 speed manual transmission
According to DIN 1,400 kg / 3,086.4 lbs
According to EG-standards 1,475 kg / 3,251.8 lbs
Performance
Top speed 375 kph / 235 mph
0-100 kph / 0 62 mph 3.2 sec
Price
Euro 380,000.00 (plus VAT)
