Delteq ignition setup, Round 2
Well,

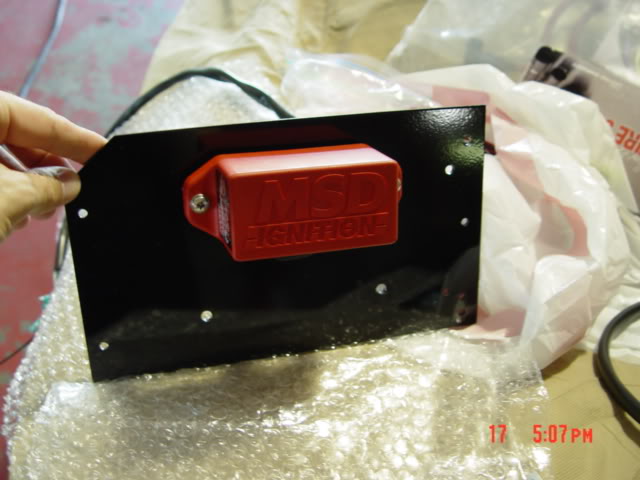

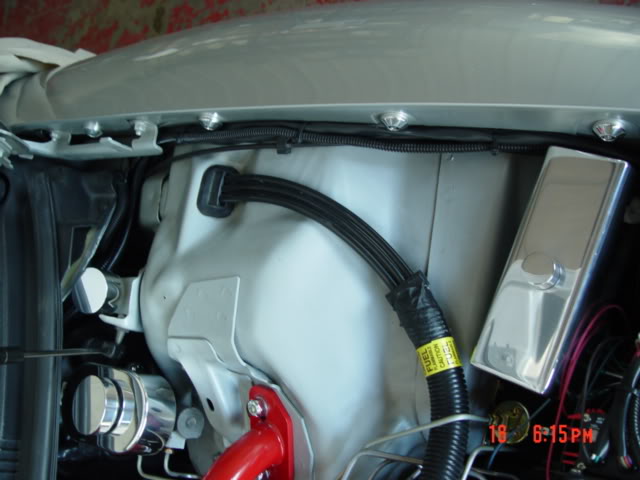

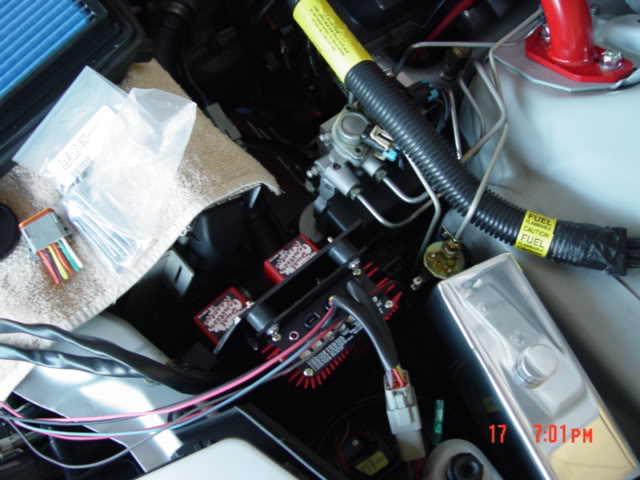

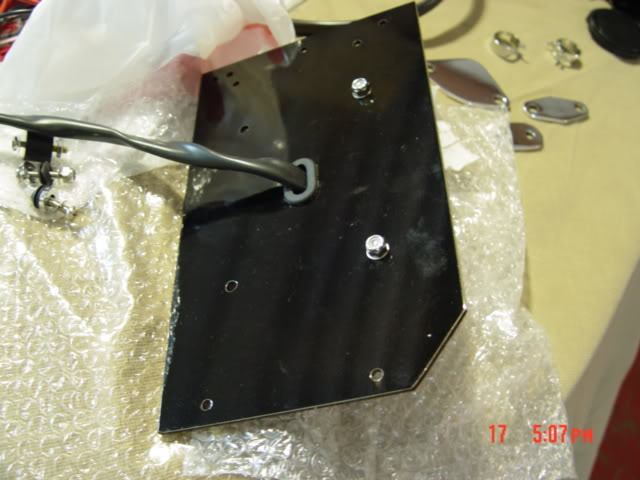

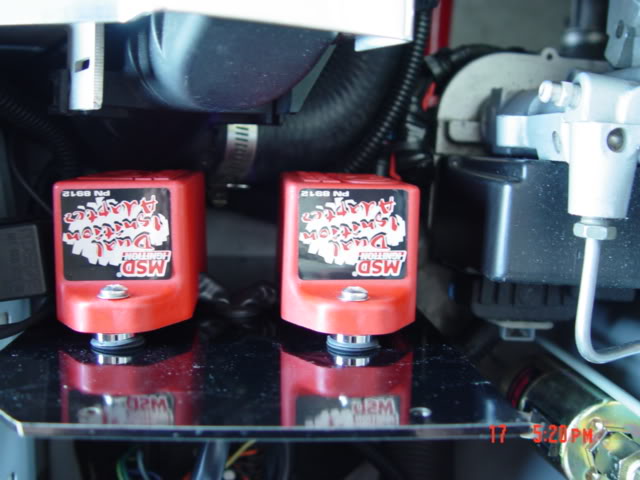

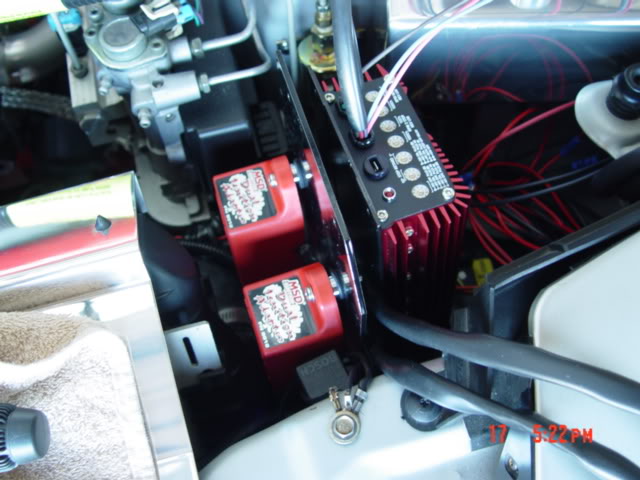

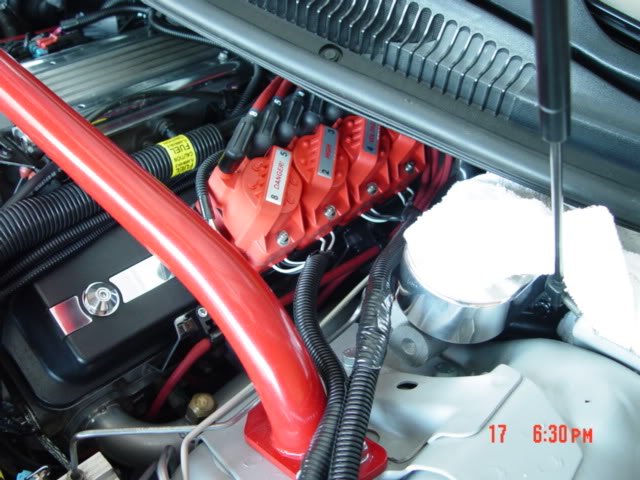

I finally got the DELTEQ setup wired completely. The wiring job coming off the DIS coils looks as good as any factory OEM process. It took forever to cut length, solder, heat-shrink and loom the setup to look factory, but I am more than pleased with the final results! I also made a custom black powdercoat aluminum plate to mount the MSD DIS 4 and both MSD tach inter-rupters. Alot of thought went into this setup to make it look as if everything is a factory location. If anyone else is doing a similar DELTEQ setup you need to look at this in person, it will save you a bunch of time and really clean up the install. I even went to the trouble of looming the DIS 4 wiring down front fender. You can actually stand over the drivers side fender and make all the adjustment to the top of the MSD DIS 4 box

Here's some pics:

Name: DSC01685.jpg Views: 7 Size: 45.2 KB

Name: DSC01686.jpg Views: 6 Size: 42.9 KB

Name: DSC01719.jpg Views: 6 Size: 56.3 KB

Name: DSC01705.jpg Views: 4 Size: 55.1 KB

Name: DSC01697.jpg Views: 6 Size: 48.5 KB

Name: DSC01707.jpg Views: 6 Size: 66.5 KB

Name: DSC01738.jpg Views: 4 Size: 42.4 KB

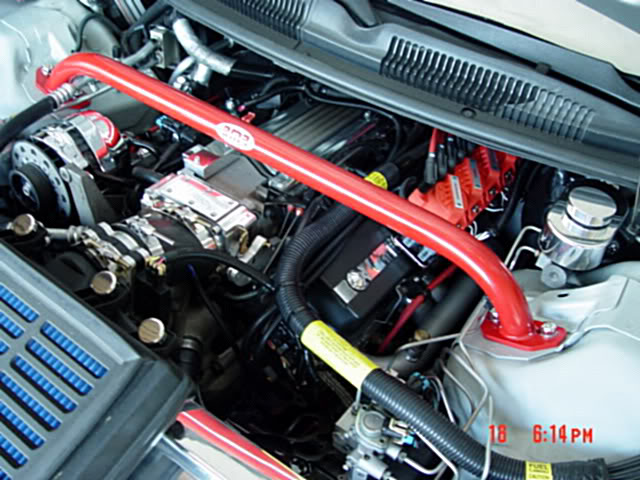

Finished:

Name: DSC01728.jpg Views: 4 Size: 73.0 KB
