volkswagen corrado , scirocco, golf, gti, jetta/vento/bora, cabrio, rabbit, passat

Pic's & Info - Two 24 valve GTI's

Old 10-20-2006, 11:12 AM
  #1
GTcars - Post God !
Thread Starter
iTrader: (1)

Supra_RZ's Avatar

Join Date: Mar 2005
Location: Toronto East
Posts: 3,518
Rep Power: 0
Supra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to all
Arrow Pic's & Info - Two 24 valve GTI's

24VSC
Nomenclature with substantial meaning

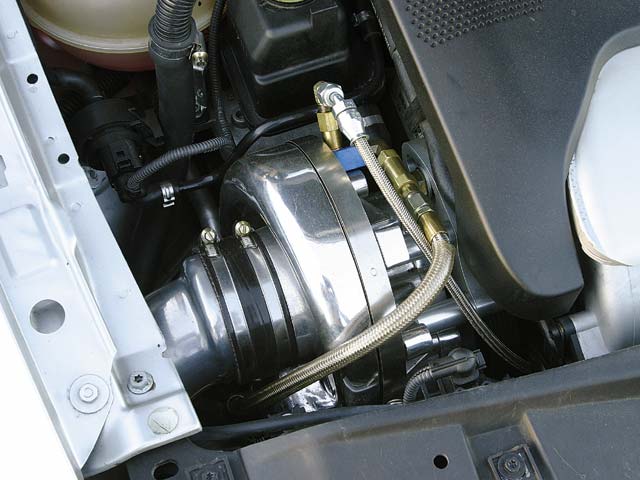

Still wet from its recent birth, VW enthusiasts have already set out on the quest for more power from the 24-valve VR6 engine. One of the easiest methods to achieve that goal is the addition of a supercharger, a technology the crew at VF Engineering have been perfecting for nearly a decade.
I was a fan of Nik Saran's work back when he was utilizing the Z Engineering centrifugal supercharger. I like him even more now that he is using the Vortech supercharger, a locally grown unit with a reputation for bulletproof reliability.

"VF-Engineering designed this kit from the ground up using the tough Vortech Engineering V9 supercharger unit," said Saran. "The key to the design of this supercharger kit is the simplicity with which it can be bolted on. The kit is supplied with every part needed to get your car up and running supercharged on the same day. The kit is set up in three stages to give you an increasing amount of horsepower and torque. Each stage is a bolt-on kit and can be added on to the previous stage."

Performance, reliability and factory correctness were major factors during the R&D carried out over a period of 2 years in California. Custom, proprietary GIAC software is supplied with this kit to safely realign all fueling and engine management parameters. The materials and manufacturing processes used were selected to match the OEM components as closely as possible. The VF kit includes a Vortech V9 centrifugal supercharger, a proprietary billet mounting bracket system, a replacement OEM serpentine belt, GIAC software with the rpm limiter increased to 7000 rpm and soft rev limiters completely removed, Bosch pressure relief bypass system, and polished ceramic aluminum-coated pipework. The kit features a 1-year unlimited-mileage warranty on major parts or an optional 2-year warranty extension to 3 years total for $150.

We tested Robert ****'s 2002 GTI VR6, a nicely done car with a Dietrich RS4 aerodynamic package, Bilstein PSS coilovers, Autotech swaybars and 330mm AP Racing brakes with Performance Cafe big brakes out back. **** used ECS hard bushings throughout the suspension with D-TEK S-2 running gear sized at 7.5x18 and shod with Pirelli P Zeros. Set up in Stage I trim, ****'s car was running a modest 6 psi with a Milltek cat-back exhaust, which bumped up the output to 229.6 hp and twist to 201 lb-ft at 3400 rpm.

The power comes on fairly smoothly once revs are up (about 3500 rpm) and pulls decently to six grand. It's also pretty darn quiet, a result of Vortech's new bearing design. It's a good first step. We'd really like to see more boost, however, and Saran is developing a Stage II kit comprised of bigger injectors, modified pulleys and new software. The 24V engine can certainly handle the extra load.

Saran has done his homework here--the entire system is nicely engineered from solid stock. The VF supercharger should provide many miles of trouble-free performance, if you can remain under the authorities' radar.


24V Normally aspirated performance

Volkswagen's most recent VR6 engine, residing within the GTI, is a marked improvement over its 12V predecessor. How Volkswagen managed to stuff 24 valves in so small a space is something of a miracle. Its engineering brains not only doubled the number of valves, they also optimized the valvetrain (volumetrically efficient inlet and outlet passages, independently adjust-able camshafts, roller- bearing surfaces) to run with far less restriction. The result is an engine that pulls to redline with surreal smoothness and makes significantly more power while doing so.

In preparation for the 2003 One Lap of America race, a group of hardcore VW fans prepped a 2002 GTI VR6 to tackle the 5,000 miles of the event. Raffi Kazanjian of Eurosport, Mike Potter of Virtual World Parts and Paul Grimes put their noggins together and built a car they thought would be competitive and yet was also civil enough to drive across the country. Judging by the few hours I spent behind its wheel, they managed to do both, and do them very well.

As they were competing with cars making three times as much horsepower, there was no way the team could ever hope to match the firepower. They did, however, optimize what was there and made sure all of it got to the ground. The engine was augmented with several bolt-on components, including Eurosport's Cold Air Intake, its stainless-steel exhaust and VW Motorsport mounts and bushings. The software gurus at GIAC optimized the ECU, revising fuel and timing curves and raised the rev limit a few hundred rpm. Although the gains were fairly modest (187 whp at 6400 rpm), the car was equipped with a Kraftswerks' close-ratio gearbox and Quaife limited-slip differential that left the car with decidedly pronounced accelerative properties.

This thing rips through gears like a formula car, the first three punctuated by tire-chirping upshifts. Nitrous Express provided a 50-hp-shot nitrous oxide kit for instant power, on the straights anyway. Use it anywhere else, and the GTI will launch into the abyss.

While VW has made forward strides with its suspension settings, they remain far too soft to be considered a true sports suspension. The team chose H&R RSS coilovers as replacements, and they deliver ride quality the factory should emulate, eliminating the GTI's tendency to wallow through the corners and dive during hard braking. SPC's adjustable upper strut bushings helped the team set up the car's handling for specific track conditions, and a Neuspeed 25mm rear swaybar was fitted to dial out the car's tendency to understeer. Eurosport's front and rear stress bars kept the suspension geometry in line throughout the brutal event.

For the big Stoptech front brakes, the team used aggressive Hawk HP pads. The rear binders were based on VW's 337 model Golf. Needing running gear that was both competitive and rugged, the team chose super-light 18-in. SSR Competition wheels and agreed that Michelin Pilot Sport rubber (235/40ZR-18) would deliver the needed grip .

The body was modified with European bumpers, black rub-strips, black side moldings, 337 side skirts, smoked Euro headlights, a Hella Micro DE wireless foglight kit, MHW smoked fender markers, European GTI taillights, Kamei rear bumper carbon-look protector, 4Motion front/rear valance, Hella rear upper spoiler, Euro Aero front wipers and a Skoda rear wiper blade. The car was also equipped with VW's factory roof rack and bike carrier so the crew could get around the various tracks more easily.

Despite the increased spring rates (800 lb. front/400 lb. rear), the car behaved very well during my test drive, providing good high-speed stability and great control through tight corners. Braking was well balanced, and if those Stoptechs had limits, I could not find them. But it was the GTI's Kraftwerk transmission that really made this car fly--the aggressive gearing was well suited to the canyon road we drove and made the most of the car's powerband.

There's something wonderfully utilitarian about a VW Golf, and to use it on the track seems a natural progression in its progress from factory to dismantler. Raffi and those like him keep the VW flame alive by such conversions and do a lot toward converting others to the VW cause.
Supra_RZ is offline
Old 10-20-2006, 11:18 AM
  #2
GTcars - Post God !
Thread Starter
iTrader: (1)

Supra_RZ's Avatar

Join Date: Mar 2005
Location: Toronto East
Posts: 3,518
Rep Power: 0
Supra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to all

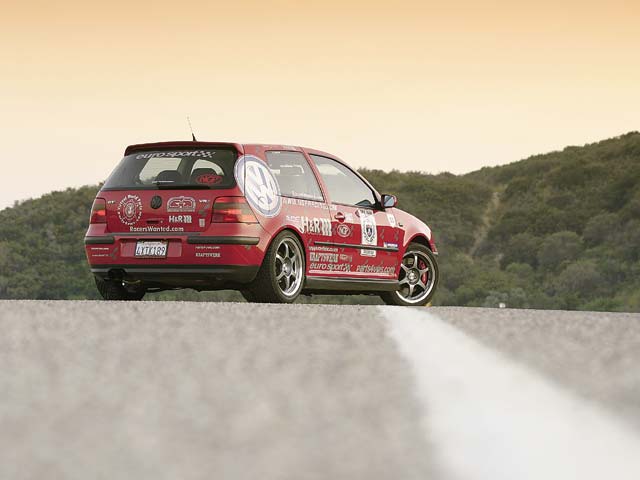

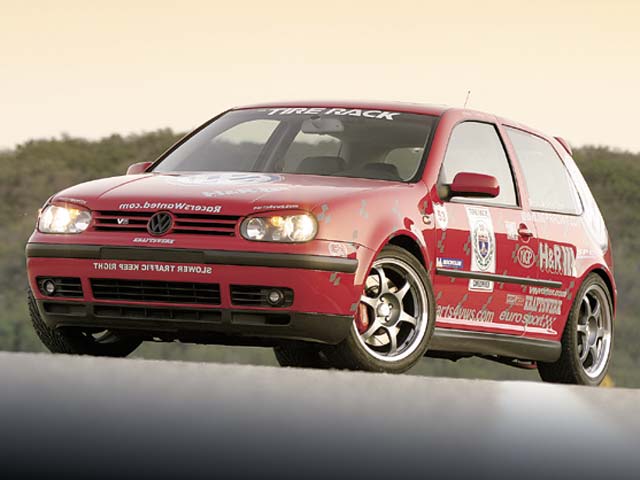

2002 VOLKSWAGEN 24V GTI

Engine - 2792 cc

Type - Narrow angle six, 24-valve aluminum head

Internal modifications - None

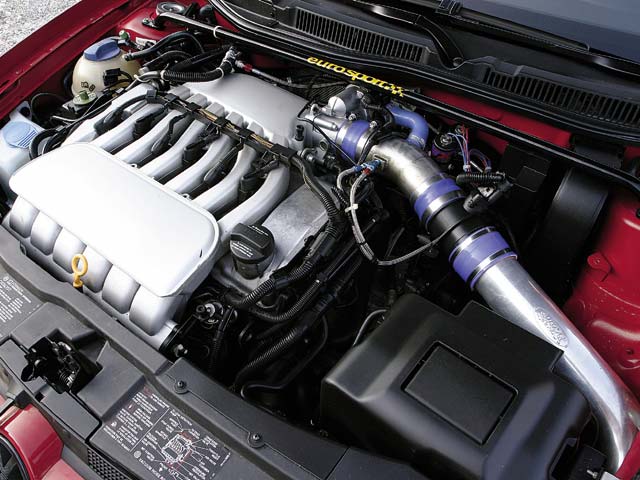

External modifications - Eurosport Race cold-air intake, Eurosport stainless-steel exhaust, Nitrous Express 50-hp nitrous system

Engine management - modifications GIAC software

Drivetrain modifications - Kraftswerks close-ratio 02M 6-speed gearbox, Quaife differential

Suspension Front: H&R RSS coilovers with 800-lb front springs, SPC adjustable upper strut bushings, removed front swaybar, Audi TT control arms, VW Racing bushings, Neuspeed lower billet tie bar
Rear: H&R coilovers with 400-lb rear springs, Neuspeed 25mm swaybar

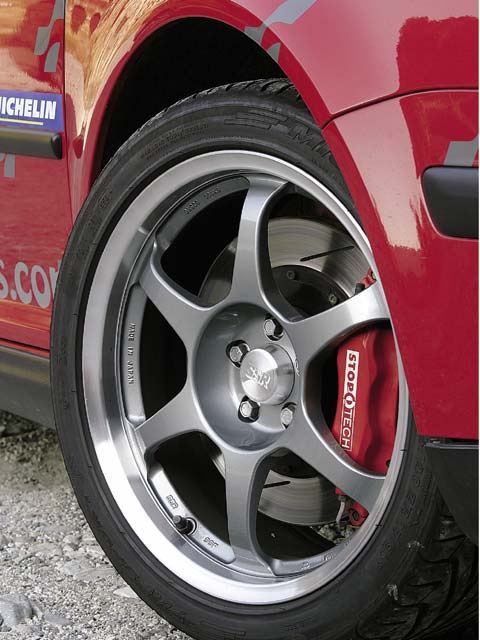

Brakes Front: Stoptech 328x28mm with four-piston calipers/Hawke pads
Rear: GTI 337 rear brakes with Ferodo pads

Wheels - SSR Competition, 17x8

Tires - Michelin Pilot Sport, 235/40ZR-17

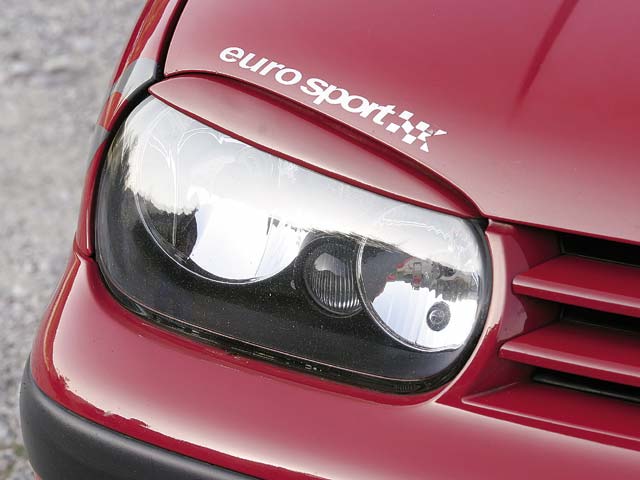

Body - European bumpers, 337 side skirts, European headlamps, Hella micro DE fogs, 4-motion front/rear valence

Interior - R32 steering wheel, 337 shift ****, R32 pedals, Top Spin harnesses, V1 radar detector w/remote display

Horsepower - 187 whp @ 6400 rpm

Torque - 183.4 lb-ft @ 3200 rpm (measured at wheels)

Redline - 7100 rpm
Attached Thumbnails Pic's & Info - Two 24 valve GTI's-1.jpg   Pic's & Info - Two 24 valve GTI's-2.jpg   Pic's & Info - Two 24 valve GTI's-3.jpg   Pic's & Info - Two 24 valve GTI's-4.jpg   Pic's & Info - Two 24 valve GTI's-5.jpg

Supra_RZ is offline
Old 10-20-2006, 11:26 AM
  #3
GTcars - Post God !
Thread Starter
iTrader: (1)

Supra_RZ's Avatar

Join Date: Mar 2005
Location: Toronto East
Posts: 3,518
Rep Power: 0
Supra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to allSupra_RZ is a name known to all

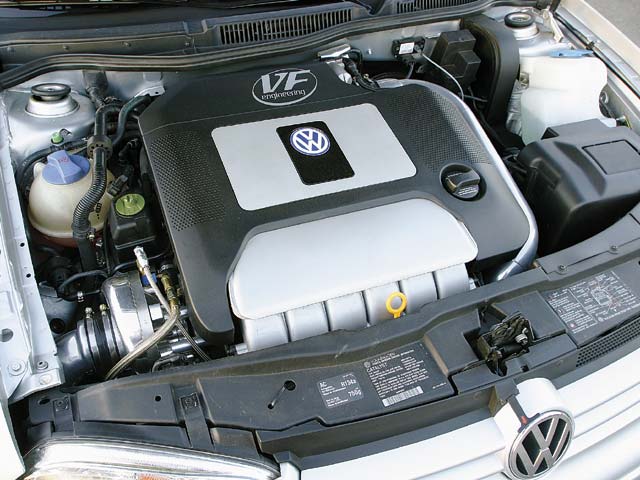

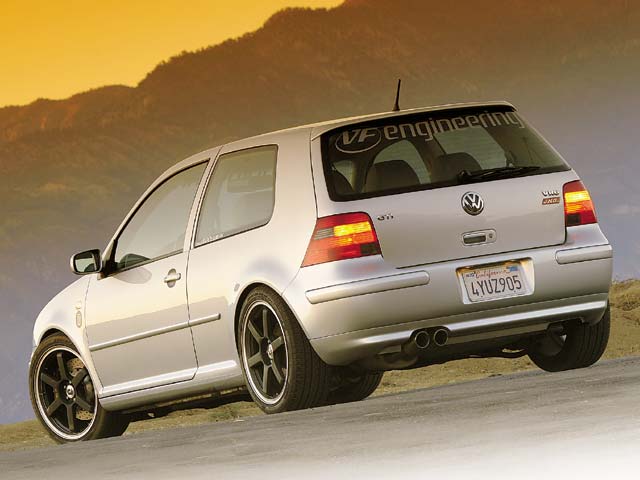

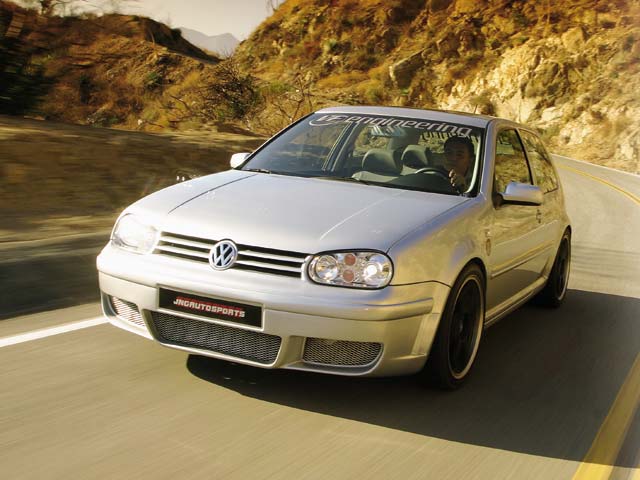

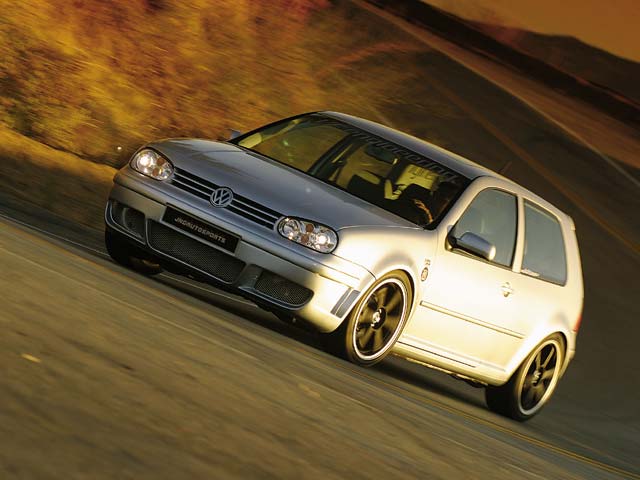

VF Engineering Supercharged 2002 GTI

Engine - 2792 cc

Type - Narrow angle six, 24-valve, aluminum head, iron block

Internal modifications - None

External modifications - VF Engineering supercharger (Vortech V-9), Milltek exhaust

Engine management modifications - GIAC software

Drivetrain modifications - Dieselgeek short shift kit

Suspension Front: Bilstein PSS coilovers, ECS bushings, Autotech 24mm swaybar
Rear: Bilstein PSS coilovers, ECS bushings, Autotech 28mm swaybar

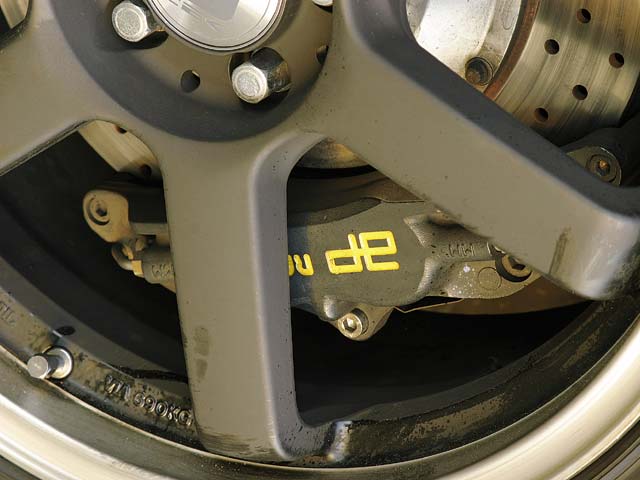

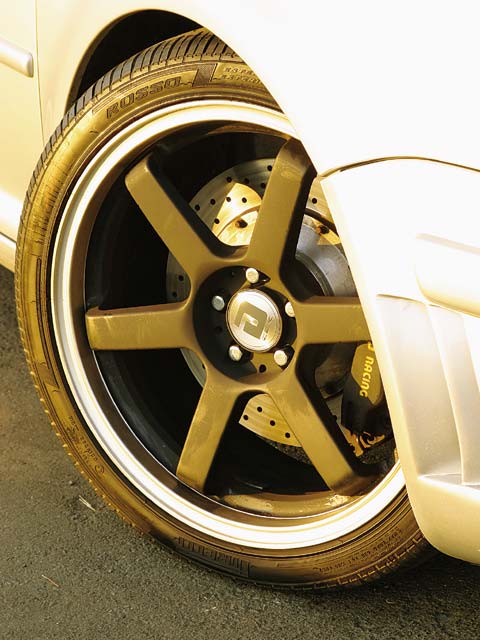

Brakes Front: AP Racing 330mm rotors, four-piston calipers
Rear: Performance Cafe 11-in. rotors, two-piston calipers

Wheels - D-Tek S-2, 7.5x18

Tires - Pirelli P-Zero, 235/40ZR-18

Body - Dietrich RS4 front bumper, 6000k HID upgrade

Interior - R32 steering wheel, Autometer boost gauge, Alpine IVA head unit, JL Audio subs

Acceleration - Quarter-mile time: 14.9 sec.
Attached Thumbnails Pic's & Info - Two 24 valve GTI's-6.jpg   Pic's & Info - Two 24 valve GTI's-7.jpg   Pic's & Info - Two 24 valve GTI's-8.jpg   Pic's & Info - Two 24 valve GTI's-9.jpg   Pic's & Info - Two 24 valve GTI's-10.jpg

Pic's & Info - Two 24 valve GTI's-11.jpg   Pic's & Info - Two 24 valve GTI's-12.jpg
Supra_RZ is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Supra_RZ
Automotive Pictures & videos
8
10-13-2006 08:46 AM
Supra_RZ
Automotive Pictures & videos
7
09-25-2006 12:34 PM
Supra_RZ
Automotive Pictures & videos
4
09-22-2006 08:30 AM
Supra_RZ
Automotive Pictures & videos
8
07-24-2006 01:41 PM

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)


Thread Tools
Search this Thread
Rate This Thread
Rate This Thread:
You have already rated this thread Rating: Thread Rating: 0 votes,  average.

Quick Reply: Pic's & Info - Two 24 valve GTI's


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
Page generated in 0.10367 seconds with 26 queries
