rpm

Hey guys got this car i'm building here its 1969 rs camaro. let me know what you guys think of the car.

Not really too much to look at right now, but it gives you a pretty good idea of what's to come.

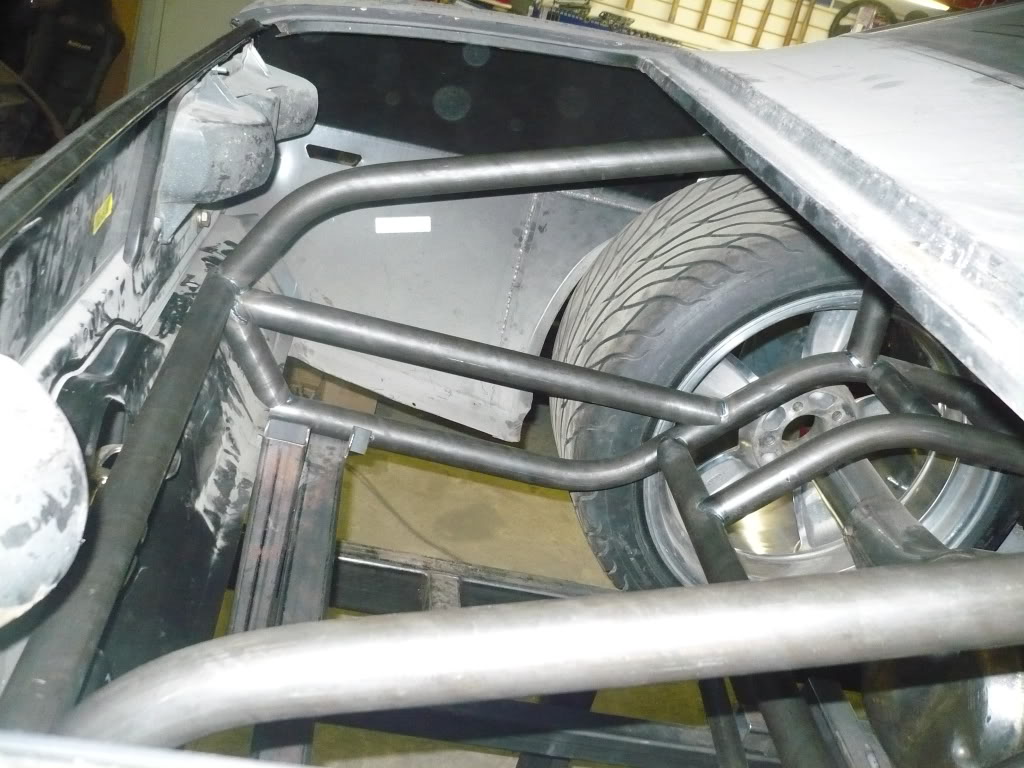

The rear rims are 20" x 14" wide with a massive Mickey Thompson street radial on them. Massive lip on them, I could probably curl up inside one of these rims haha.









The car is going to sit around 4-5" off the ground and be painted satin black hence "project darkness". Everything is going to be painted or powder coated black, except the rims lol.

As for a plowerplant, the owner is still deciding what engine block will take the abuse two turbos are going to throw at it



http://i256.photobucket.com/albums/hh193/RPM-2/Project%20Darkness/DSCF3509.jpg

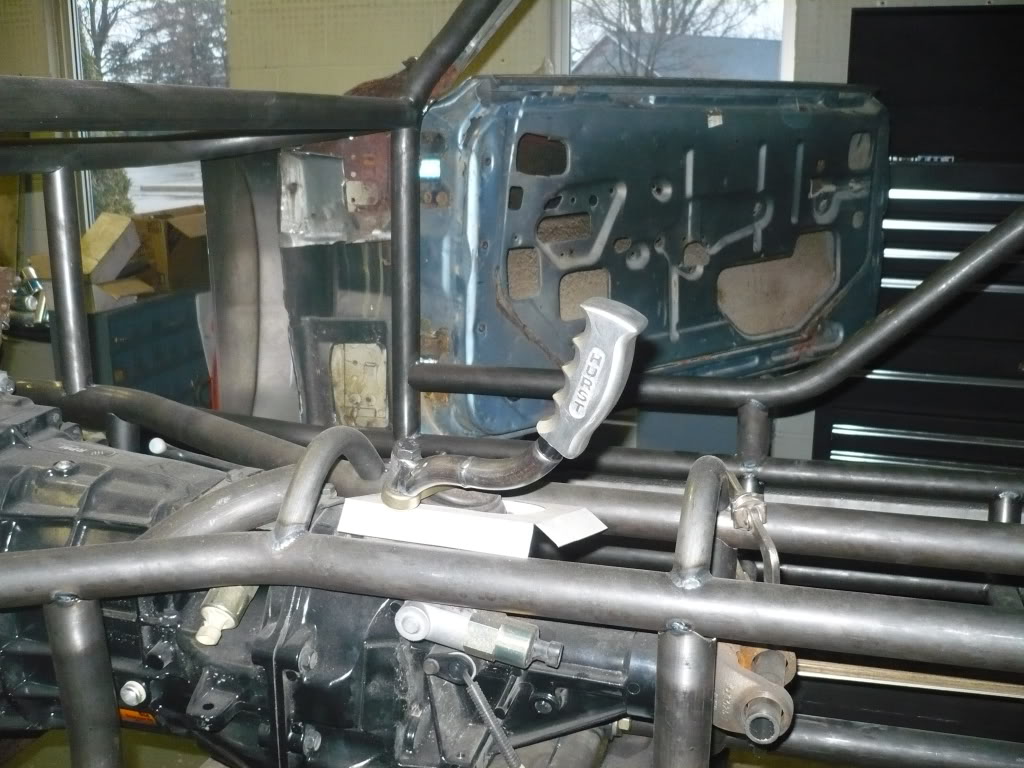

Picked up the tranny for it today....even its black, the bellhousing is getting painted too.

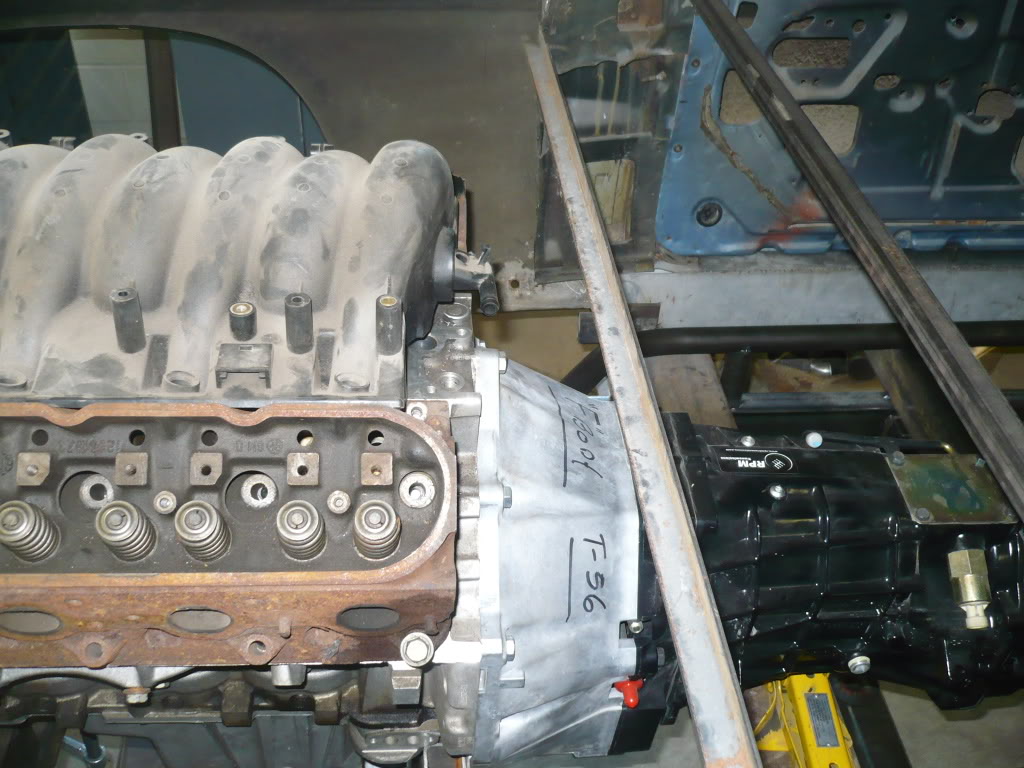

BTW its a T56 6-speed from a Viper

The engine is set back 5in, now thats insane. The drive seat in this car will pretty much be in the back and there will be no back seats. This is going to make for some crazy weight balance and weight transfer. Hoping for 50/50 balance

judgez24

looks like its gonna be pretty sweet when done. whats he using for a motor? looks to be rfom the newer ls family of gm motors.

jdmracer

...

pg29

thats definitely an LS motor, hard to tell which one tho. Thats a rediculous dish on those rear rims, thats gonna look awesome once the cars done. keep us posted.

quarts

wow that is a serious dish.. must be a pain to dial in the rear end.. but nice.. yea def a ls motor

rpm

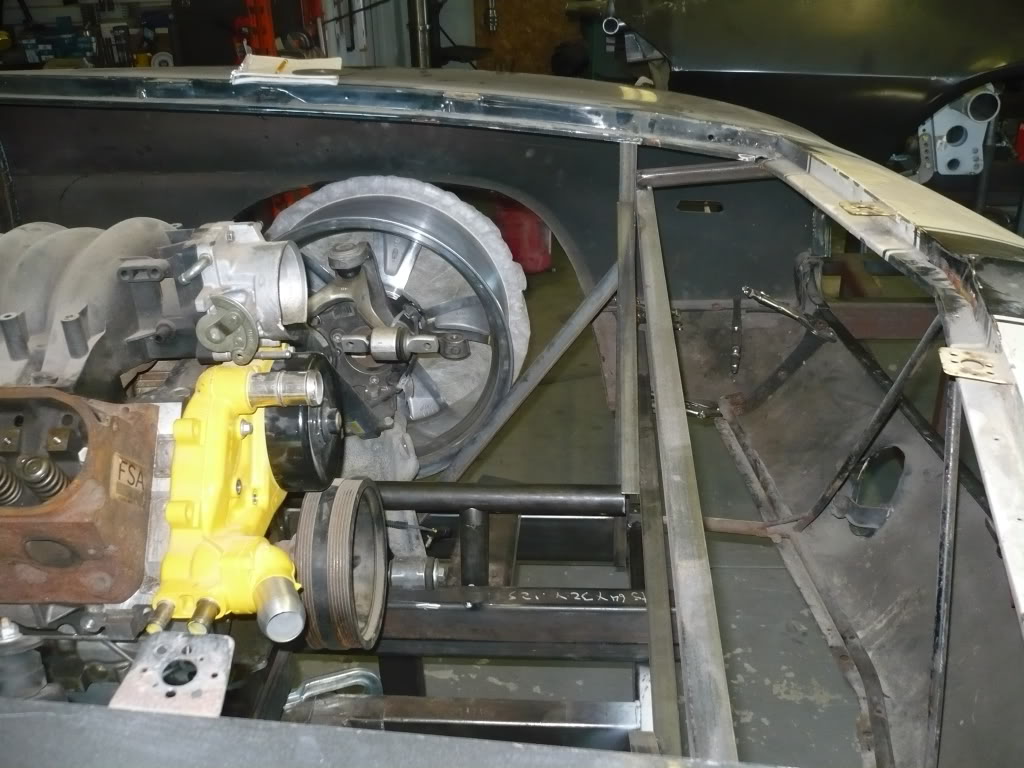

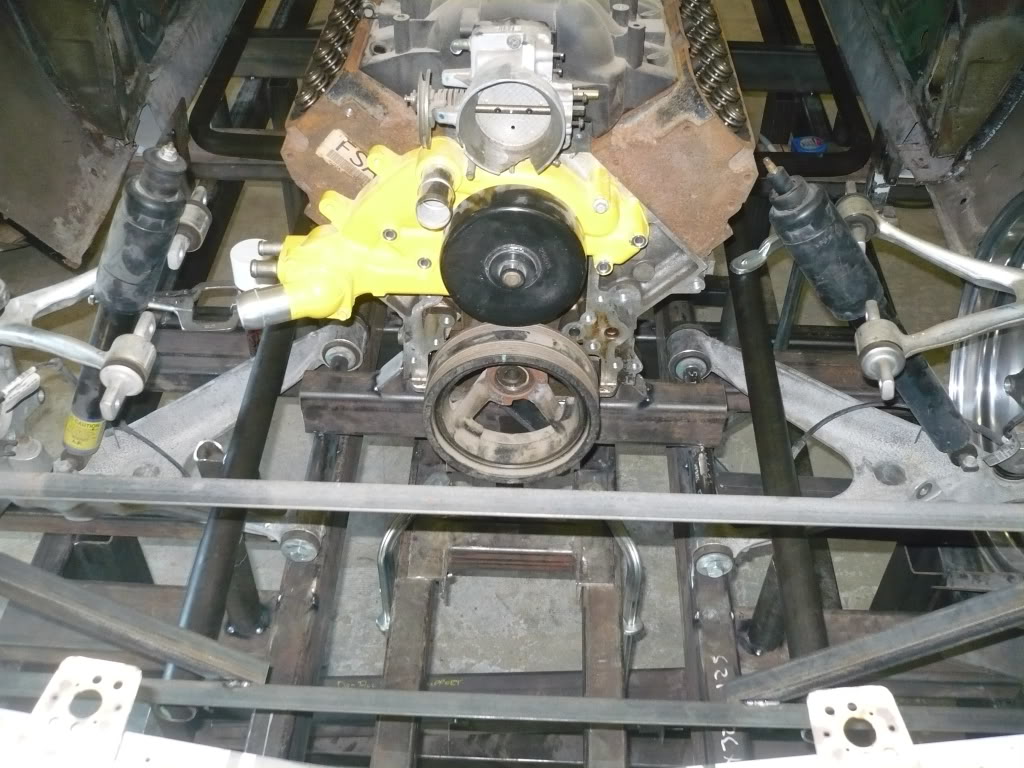

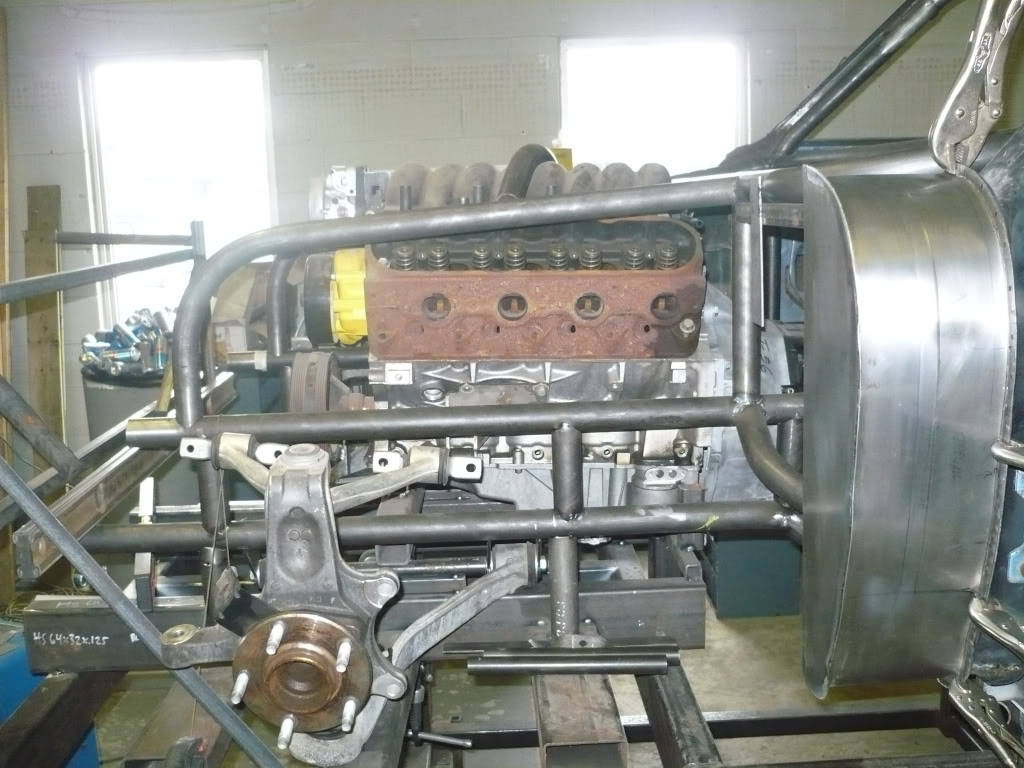

Its a 5.7L ls1 block but thats not whats going to be used. We haven't figured out if we want to go with a ls7 stroker or a twin turbo engine. the ls1 is just there for mock up. The engine is set back 5 inch right now so it has a lot of room in the front. When the cars down it will have 50/50 weight.

heres and update.

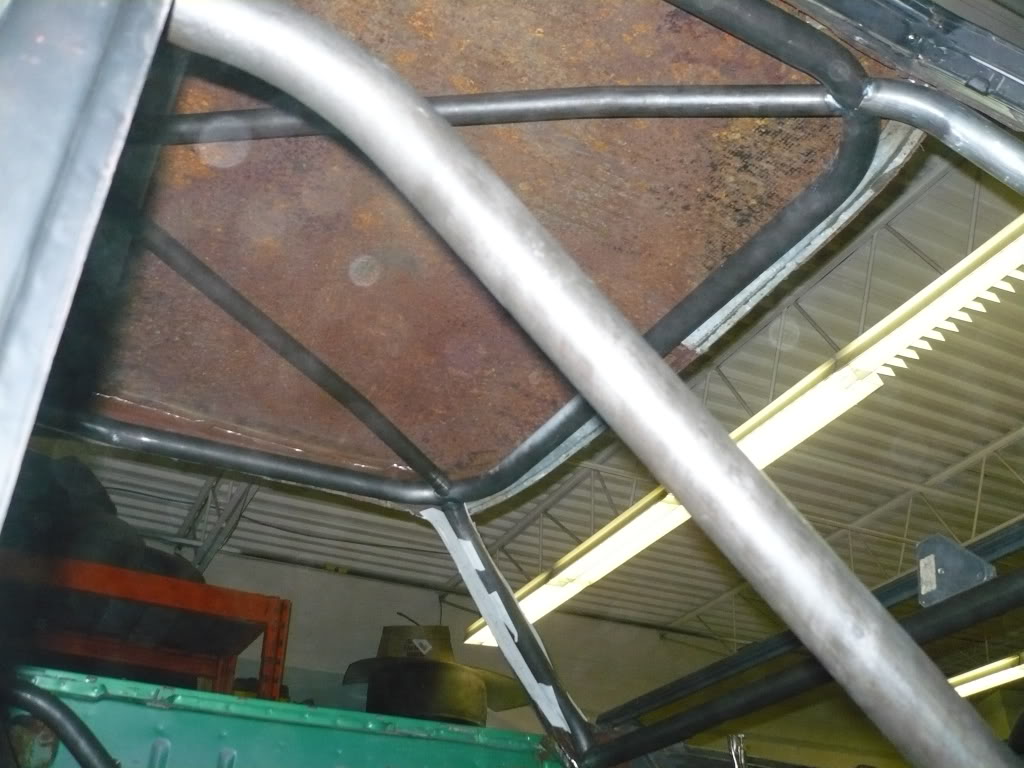

There will be a new roof going on this car later on

90TLAD3

i say u go with a turbo deisle engine from a GM truck. it will give you mad Torque. And sound really dirty :P

Legend

which shop is doing the work ?

rpm

Rpm motorsports and webber chassis out of Breslau, east side of kitchener.

Got a lil more done today

rpm

little update

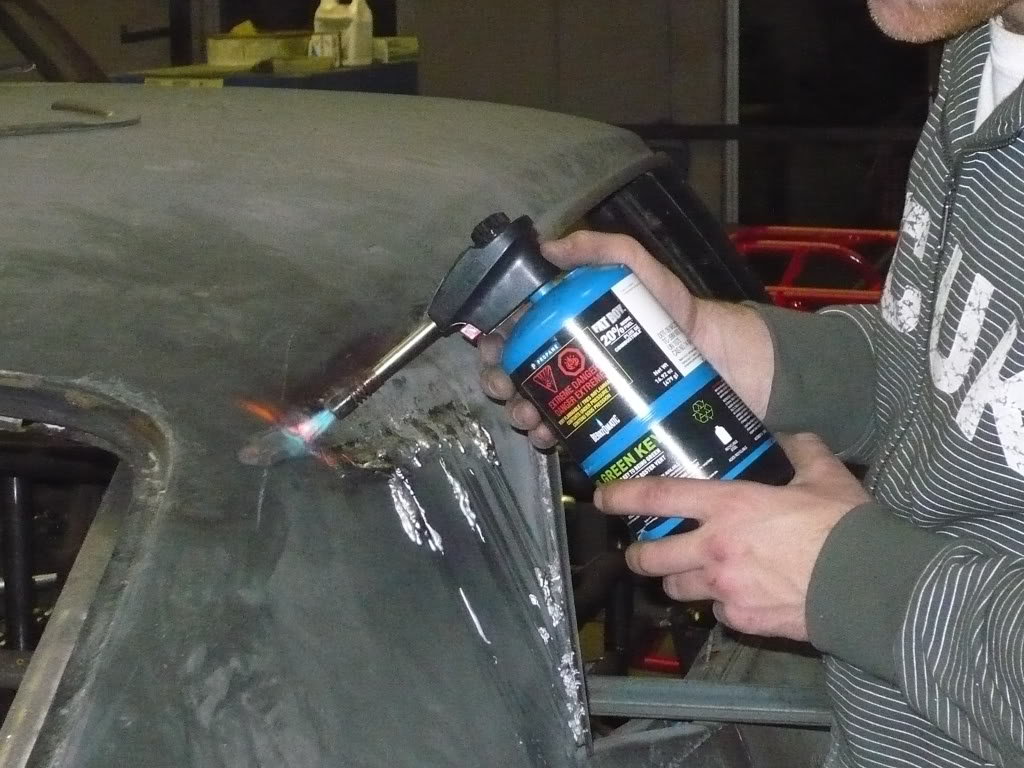

Taking the lead out of the quarter panel

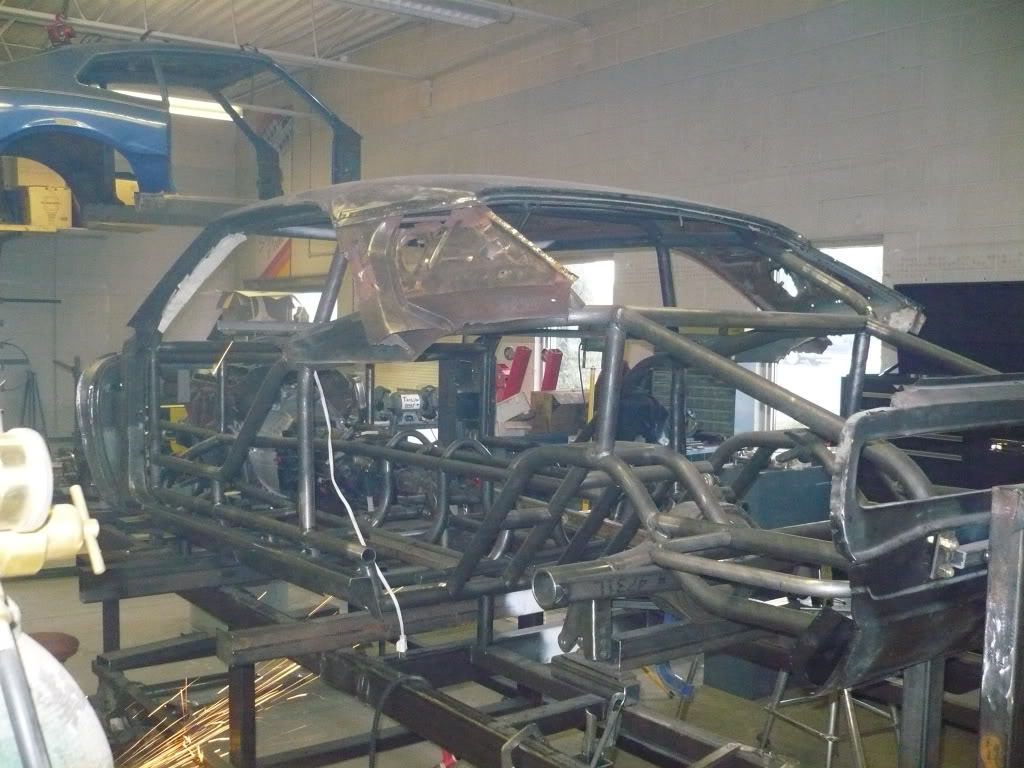

Both of the old quarters are off now

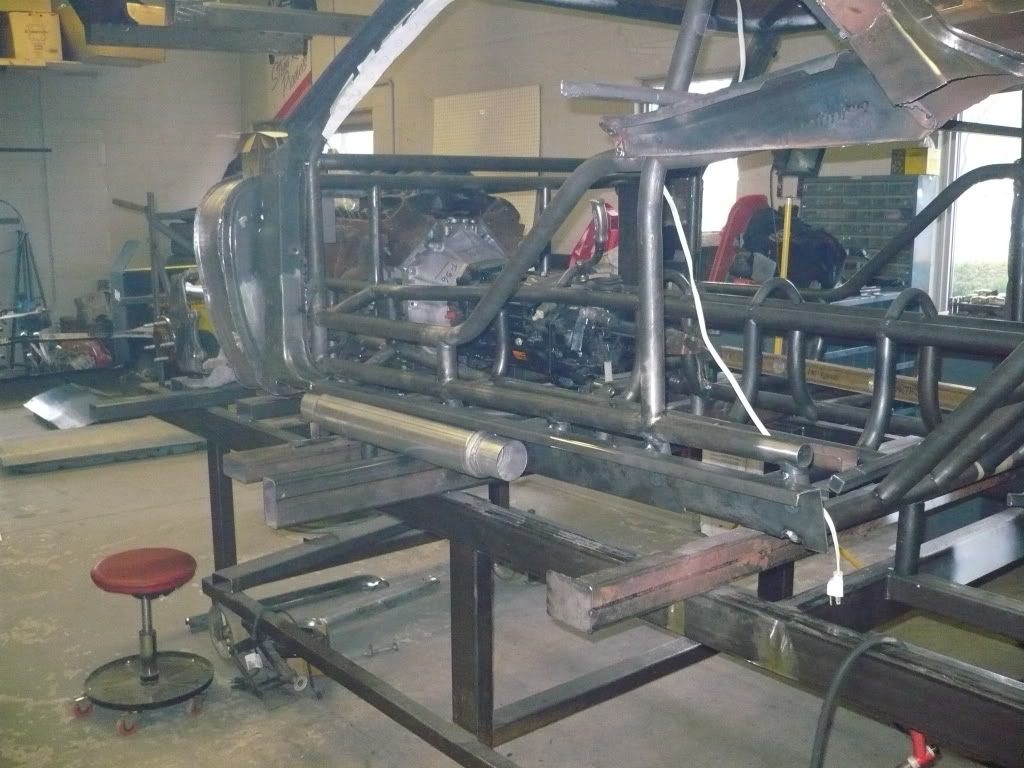

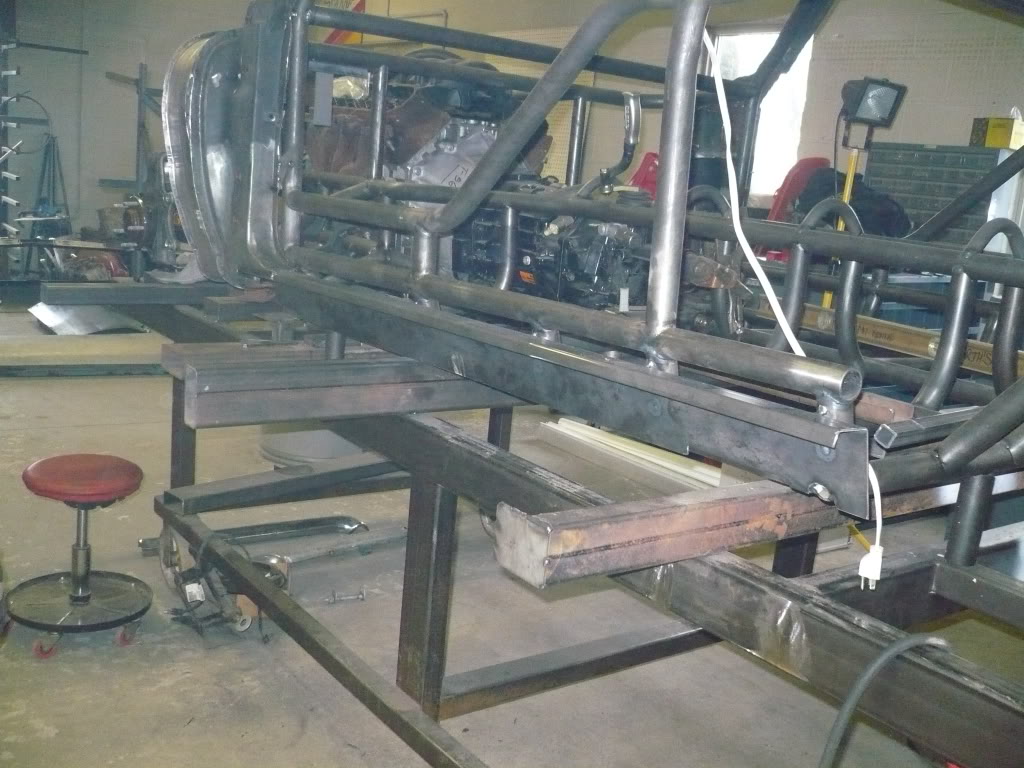

Here's the first half of the rocker, it will be a two piece rocker



The exhaust will be run inside of the rocker, the rocker is being made of 11 qauge steel.

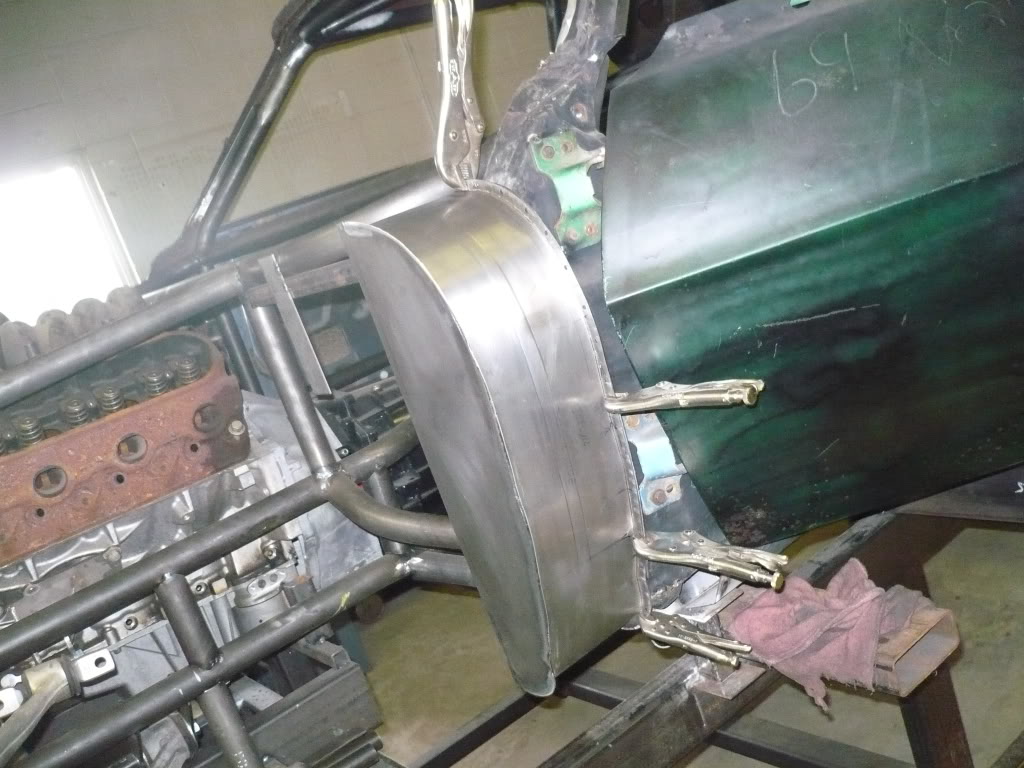

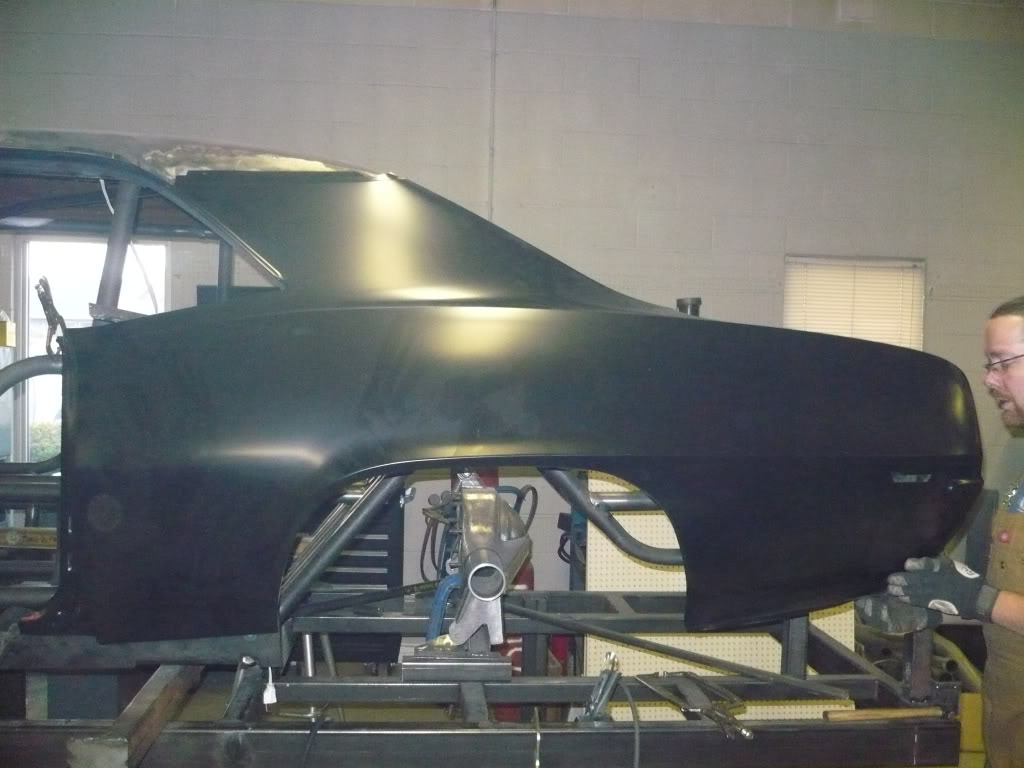

The new quarter mocked up

VindiCated

iTrader: (1)

This thread is awesome!

I love progress threads.

judgez24

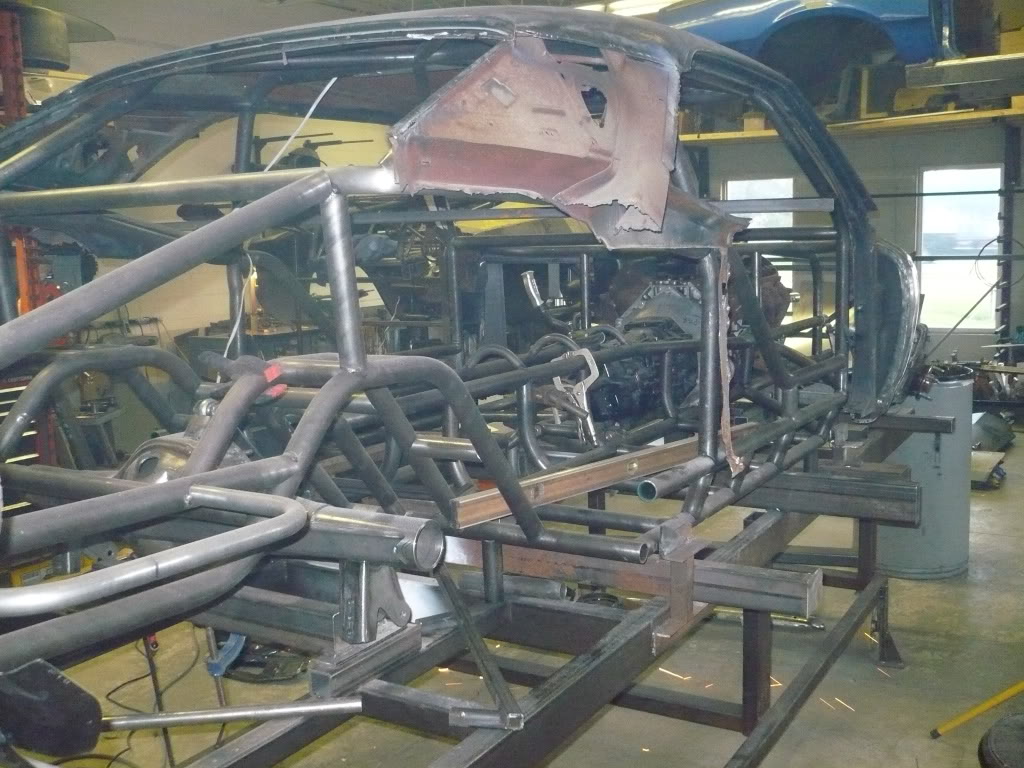

that looks fantastic man. looks like the car is gonna be ready to make alkot of power and like itll be able to safely turn some very quick times. great pipe work too. what do you guys expect the total cost to be? easily over 100g id imagine.

also seems like your replacing the entire cars body piece by piece. lol

The Don

Nice build! I'm now subscribed! Looking forward to seeing it built, keep it up!

rpm

There going to be a lot of man hours in this project, theres always at least two guys woring on the car sometimes three guys. A good base for the cost of the project is about 60g but its hard to tell how much more it will go up becuase theres a lot of one-off custom stuff going into this car.

Thanks for all the good comments guys.

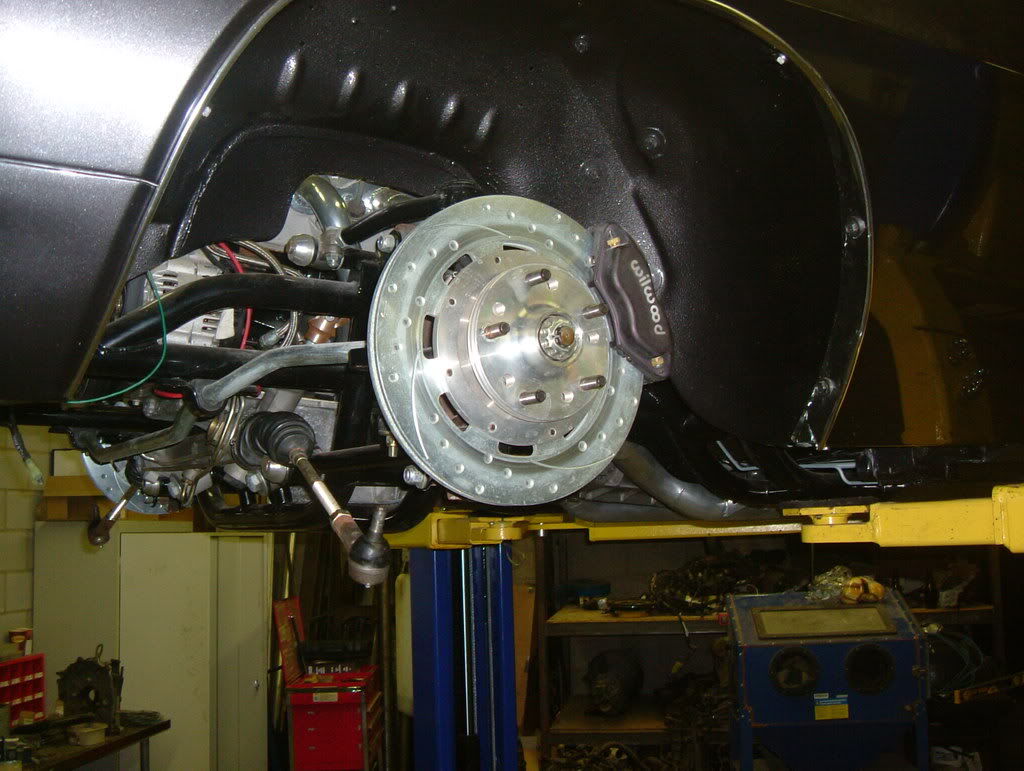

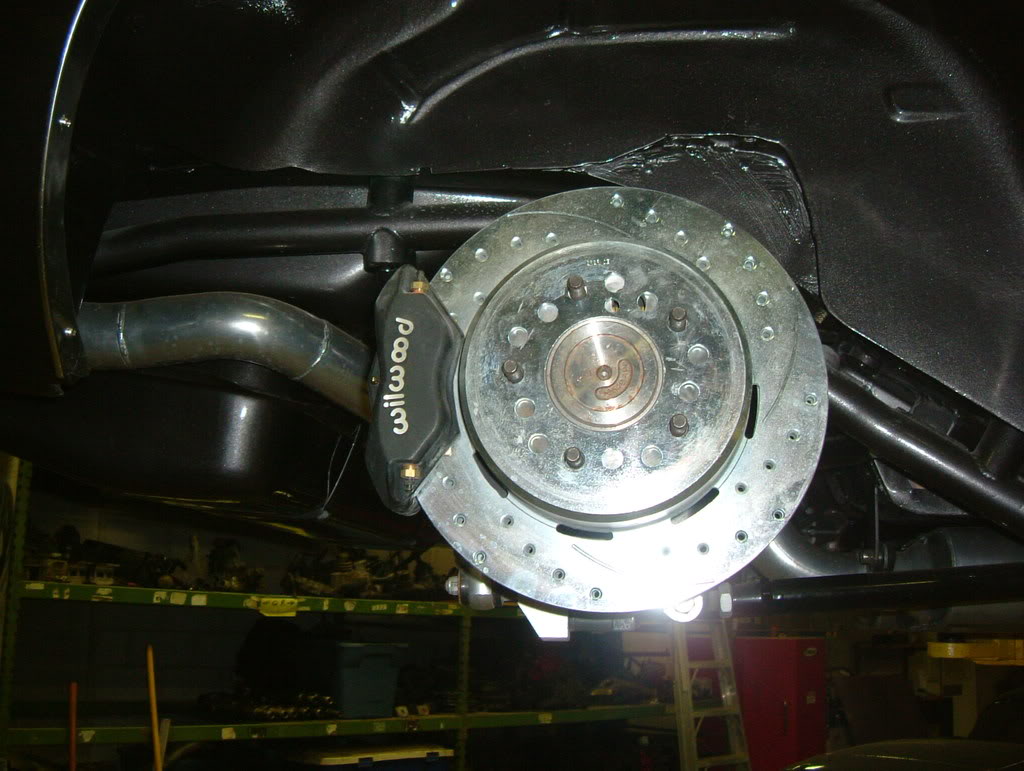

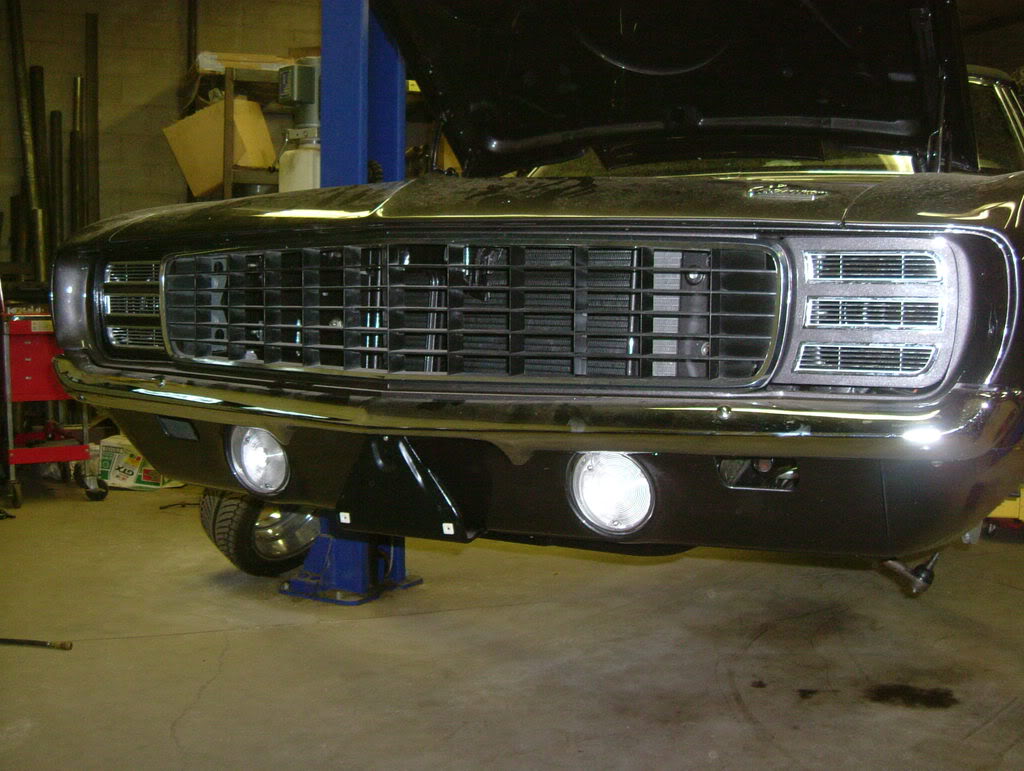

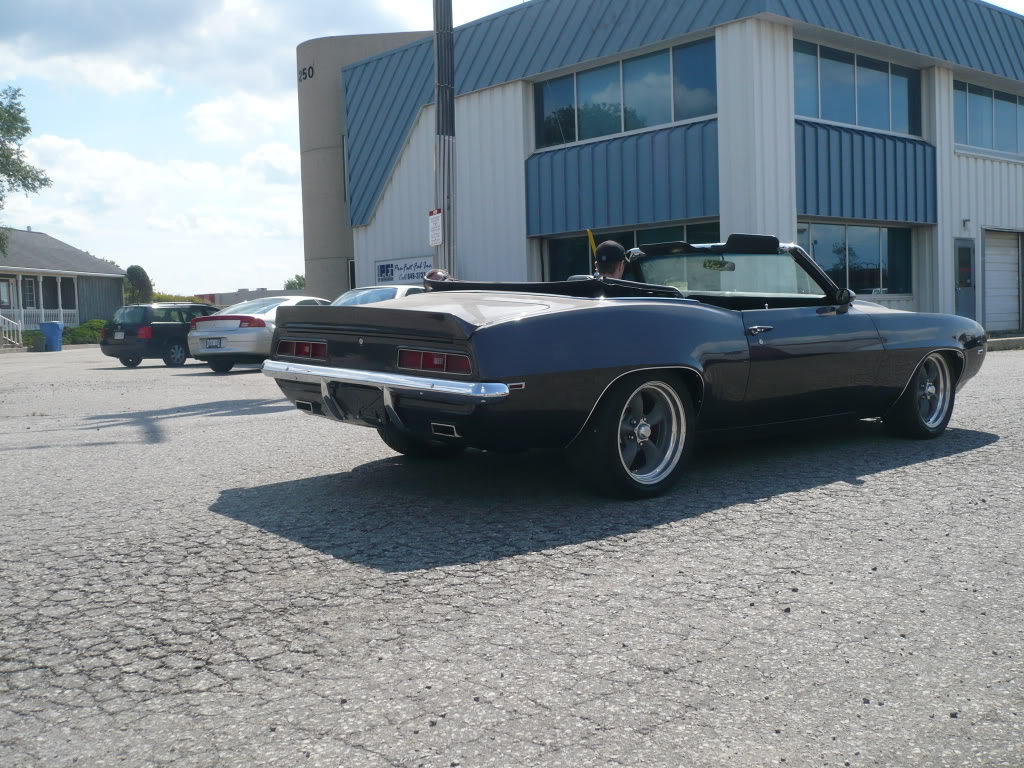

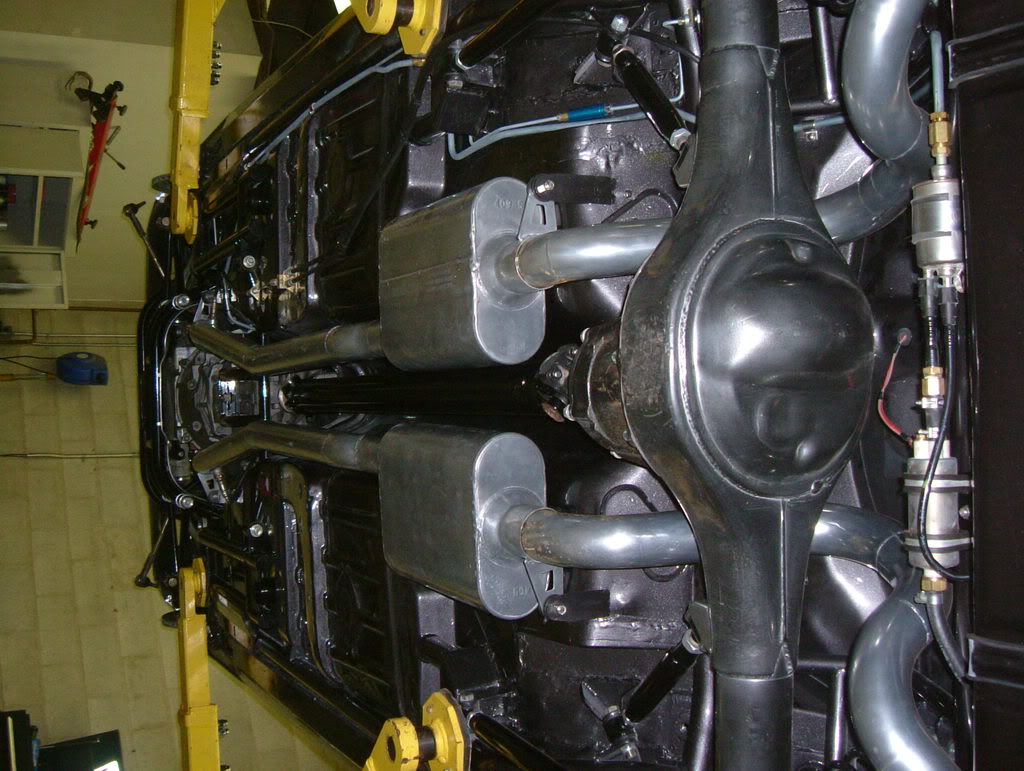

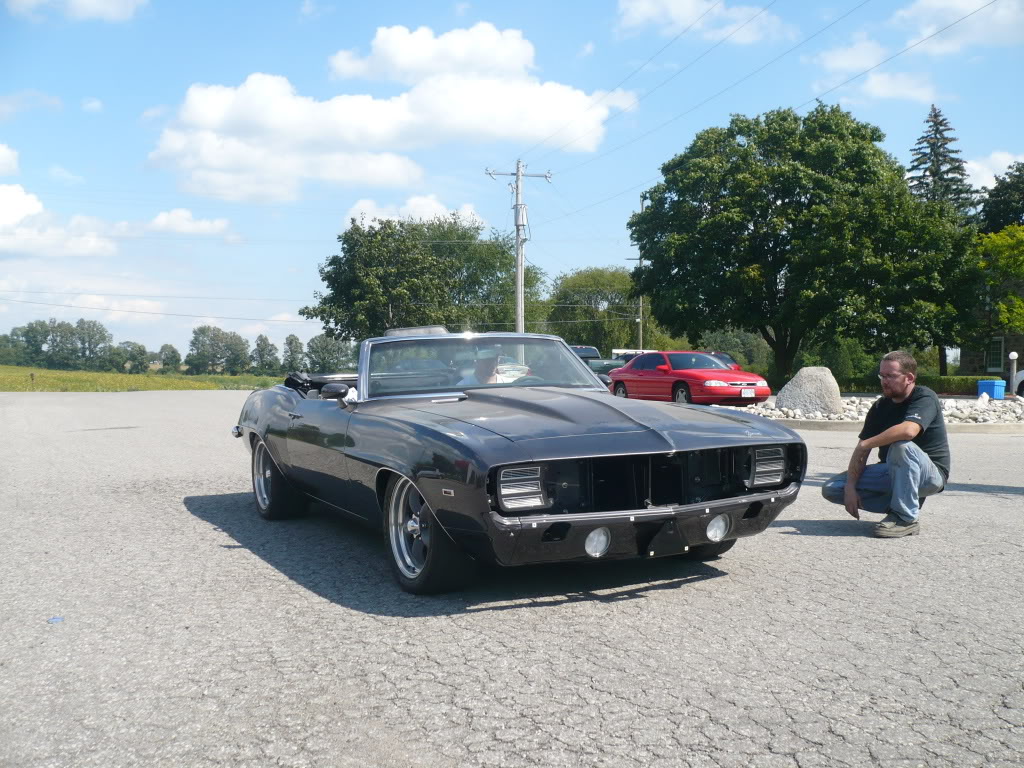

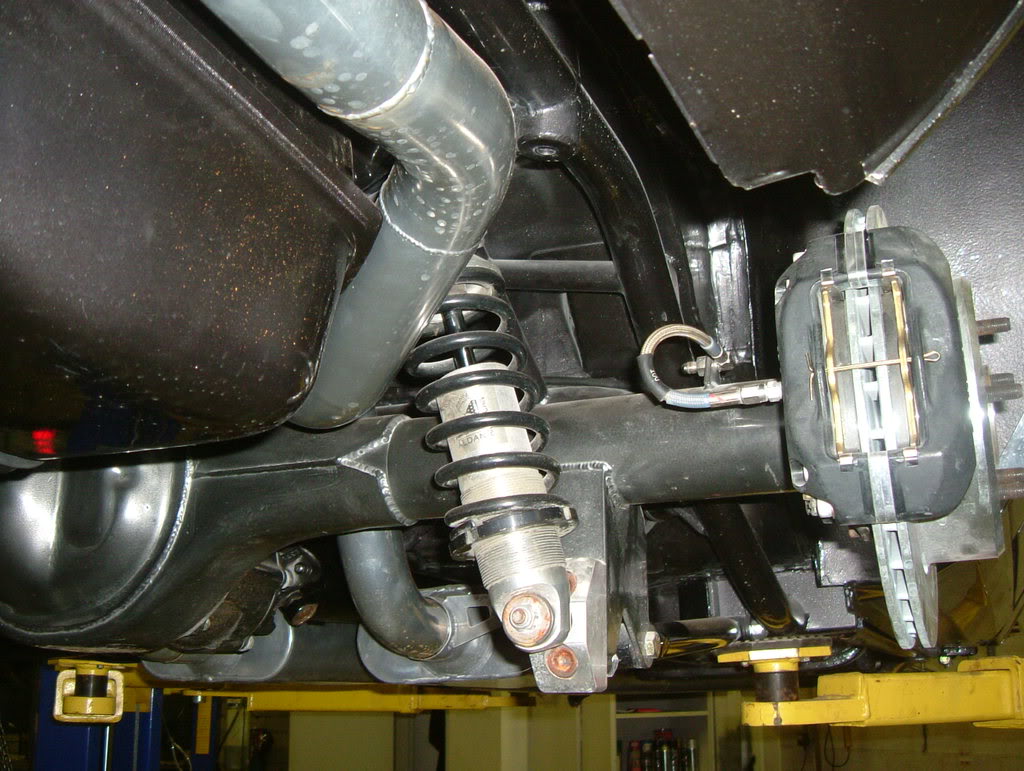

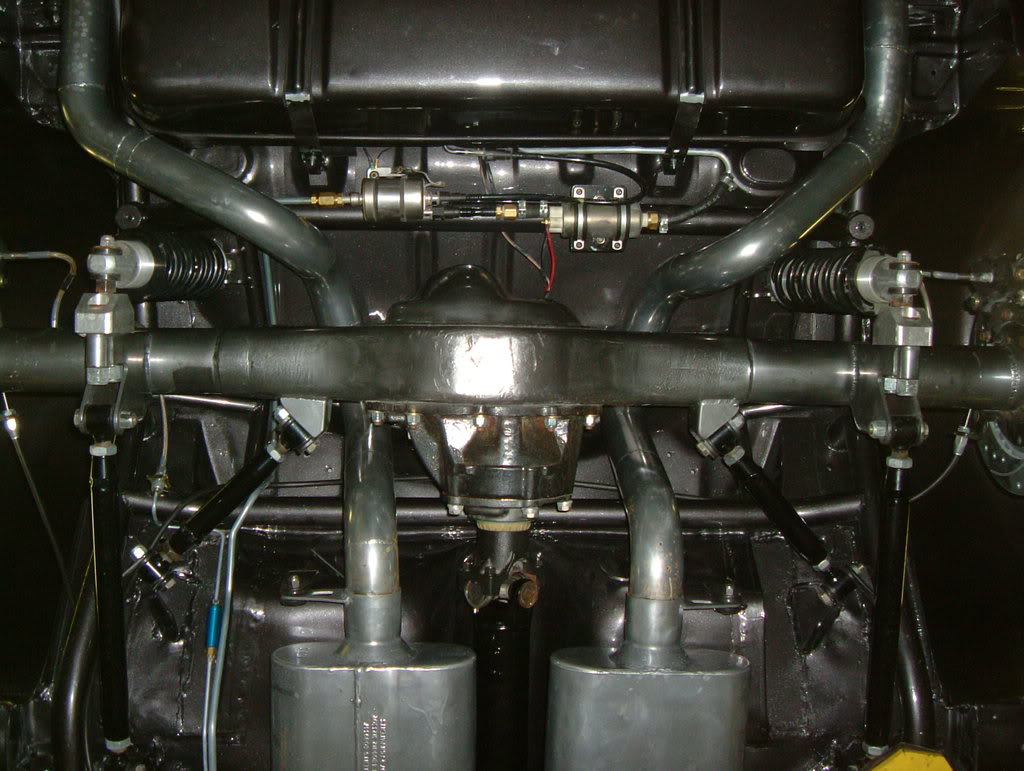

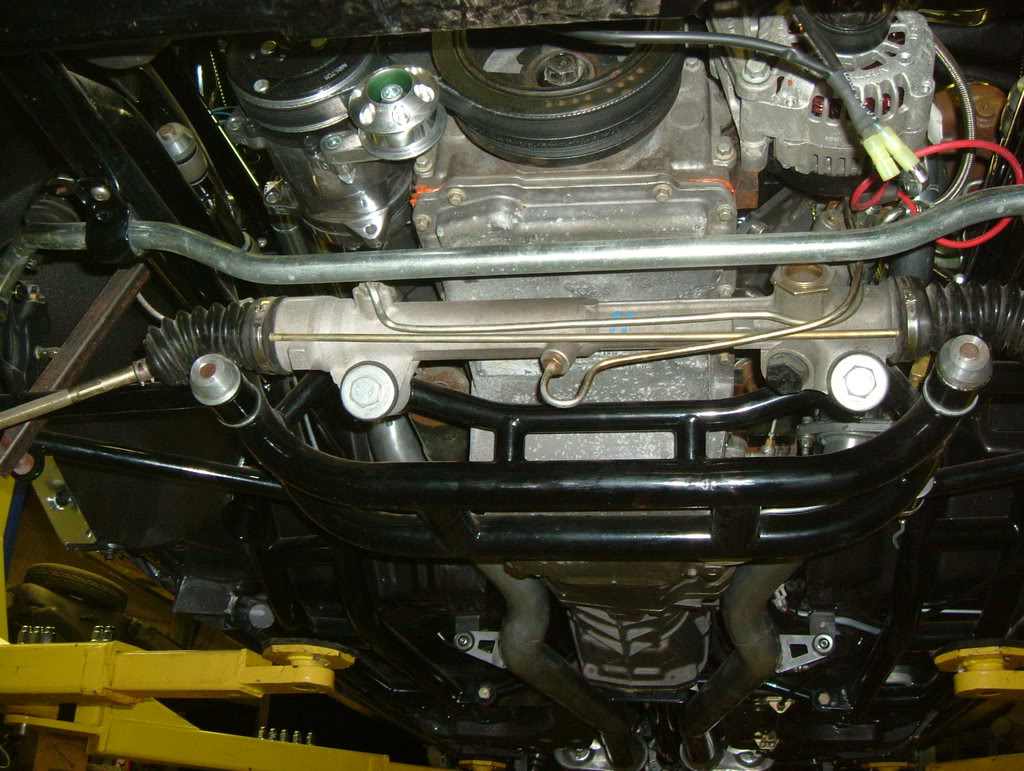

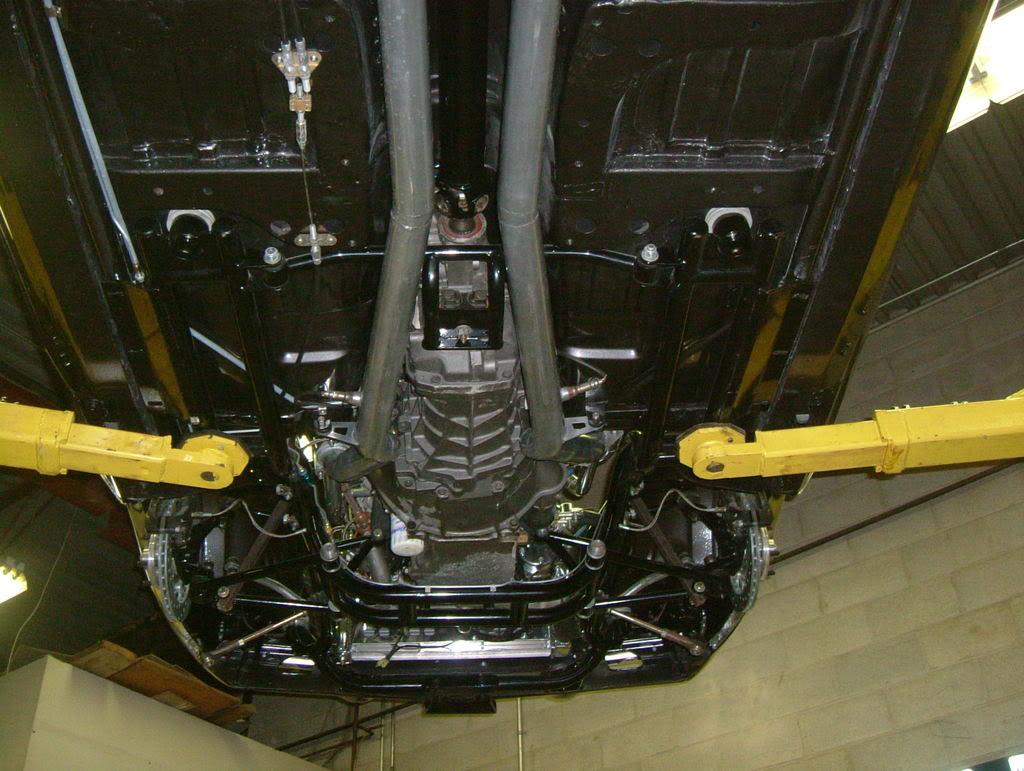

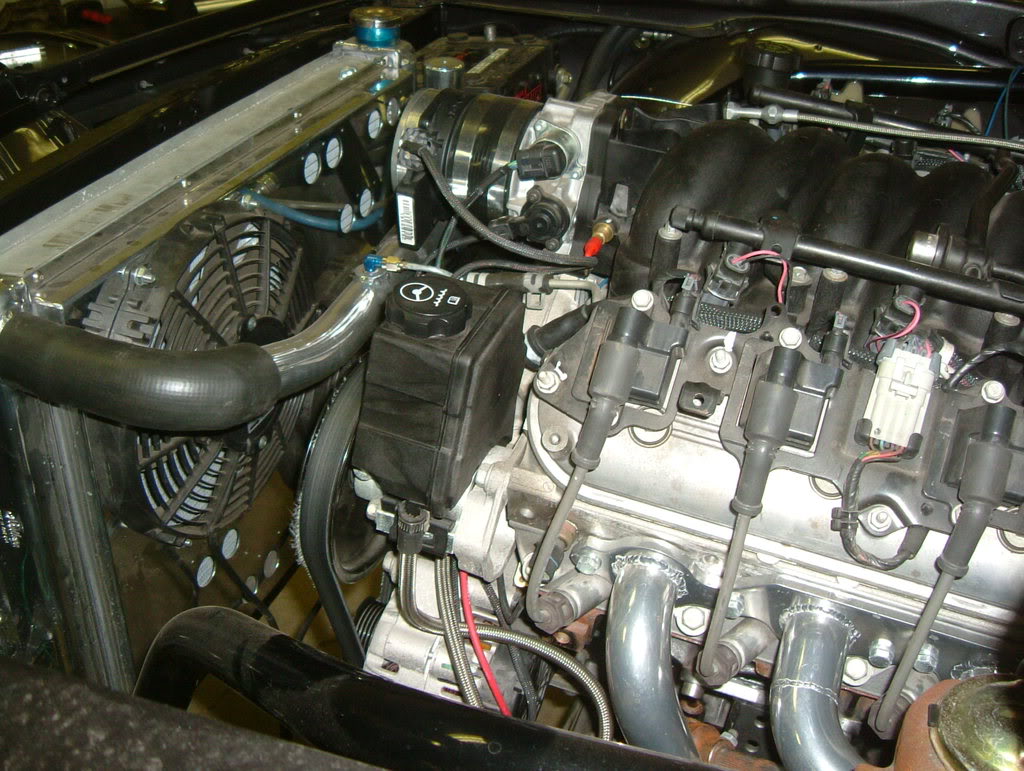

This car here cost just over 100g to build witch we did. This car was built from the ground up it was a turn key car when it left here. The paint job it self cost 35g but its a perfect paint job and it makes the car look even better. This car came in as a glove-box car. Almost everything was replaced on this car. This car has a custom full tubler frame, 2002 ls1 engine with the iron block so that it can handle the power better, also has a cam and a couple of small things like a full standalone race computer and etc. This car makes 450hp and 450+ lbs torque.

























This is just an idea of how much time goins into a car like this.

We got a lil more done today.

have a look

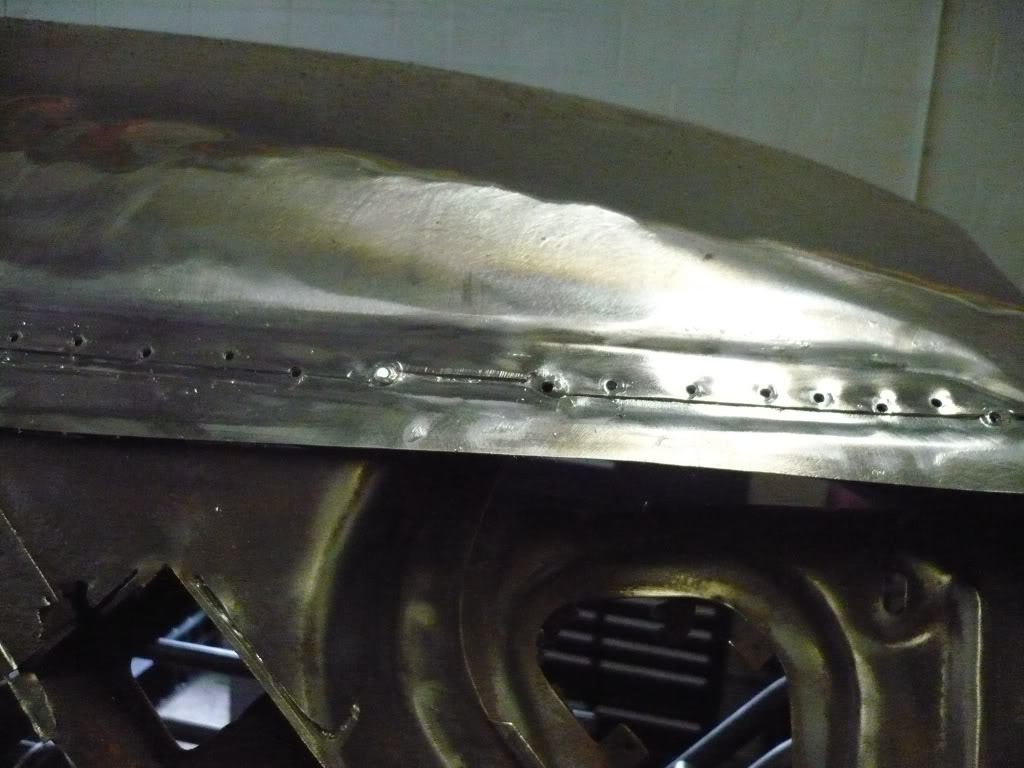

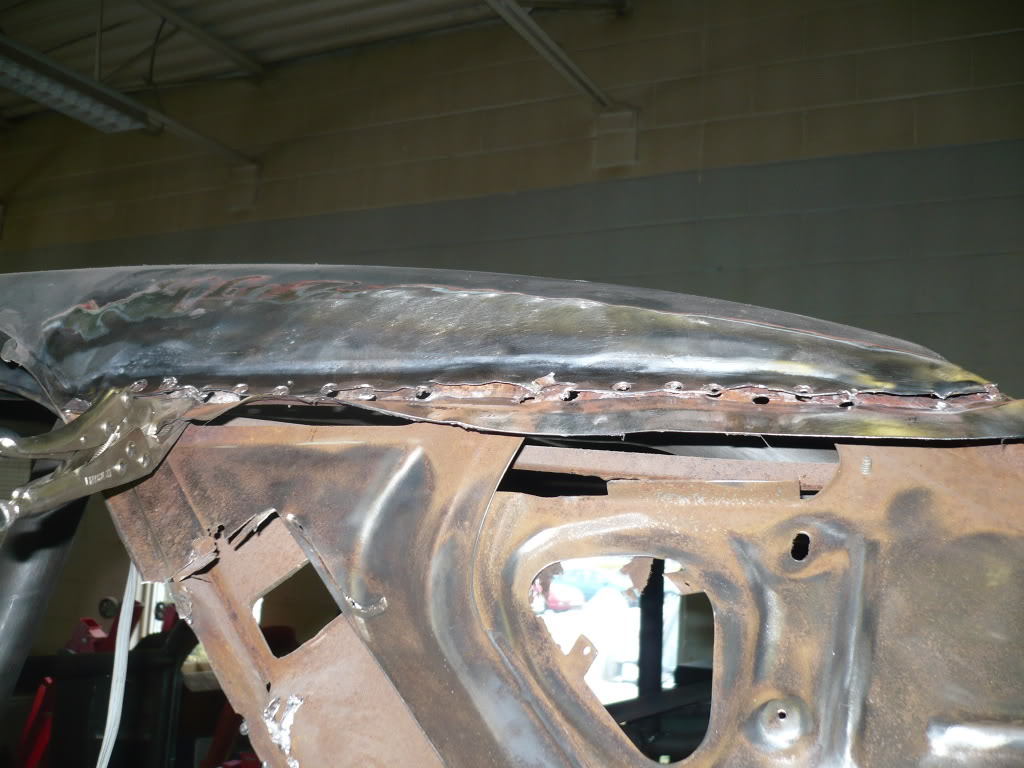

drilling out the old spot welds

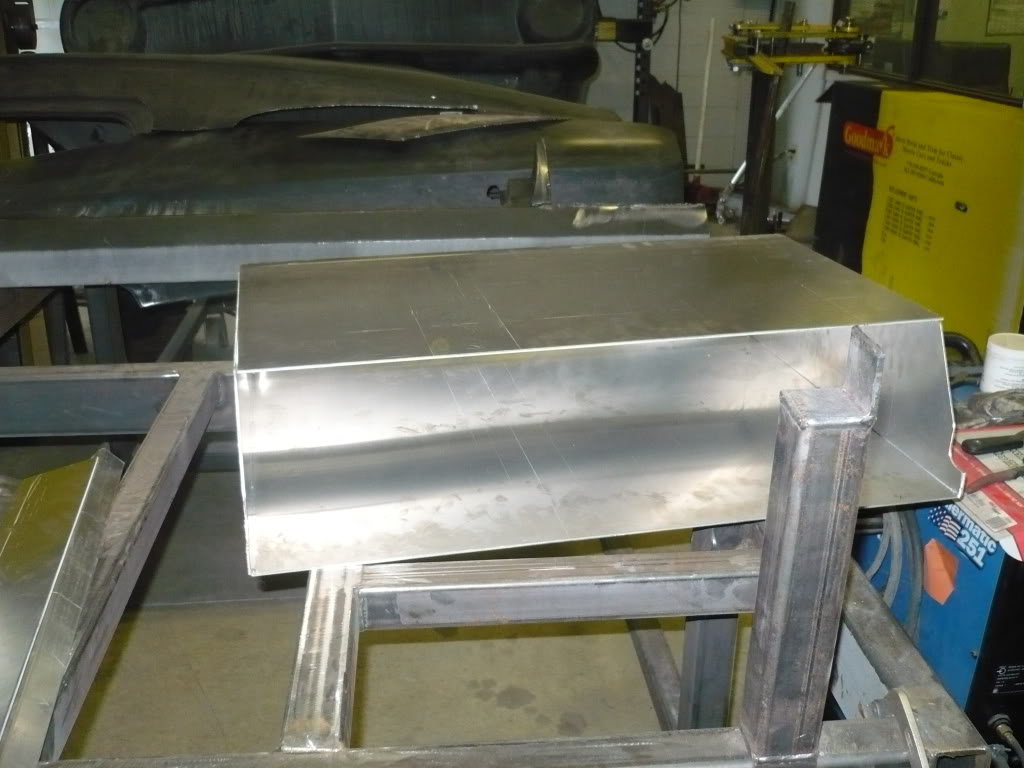

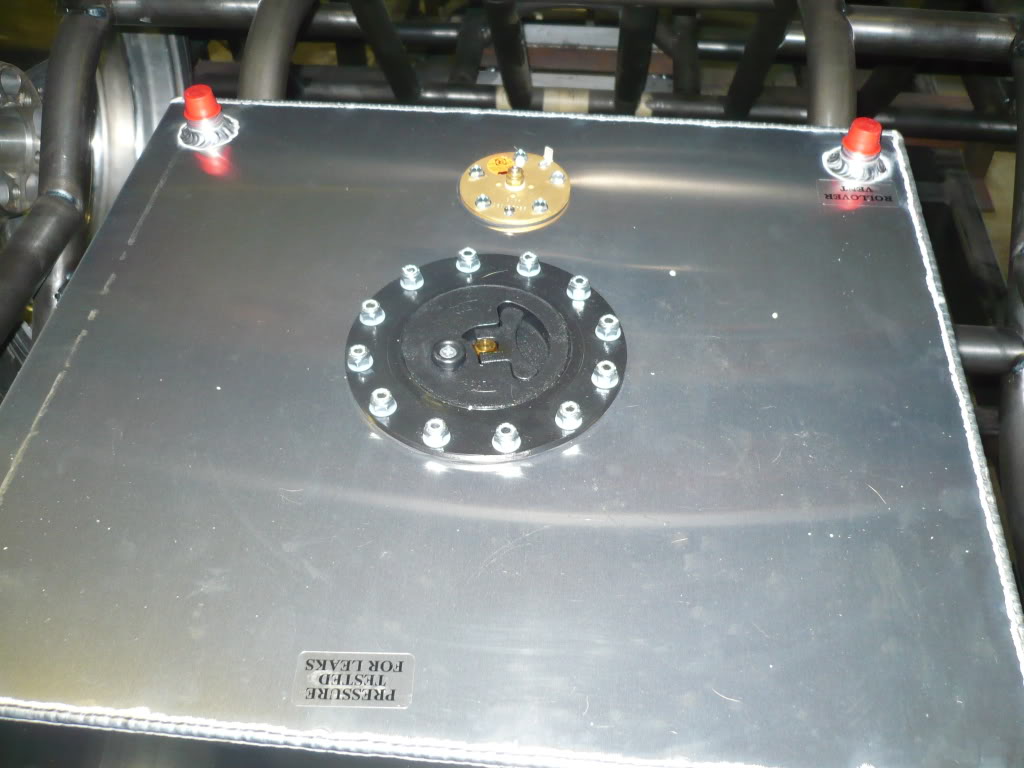

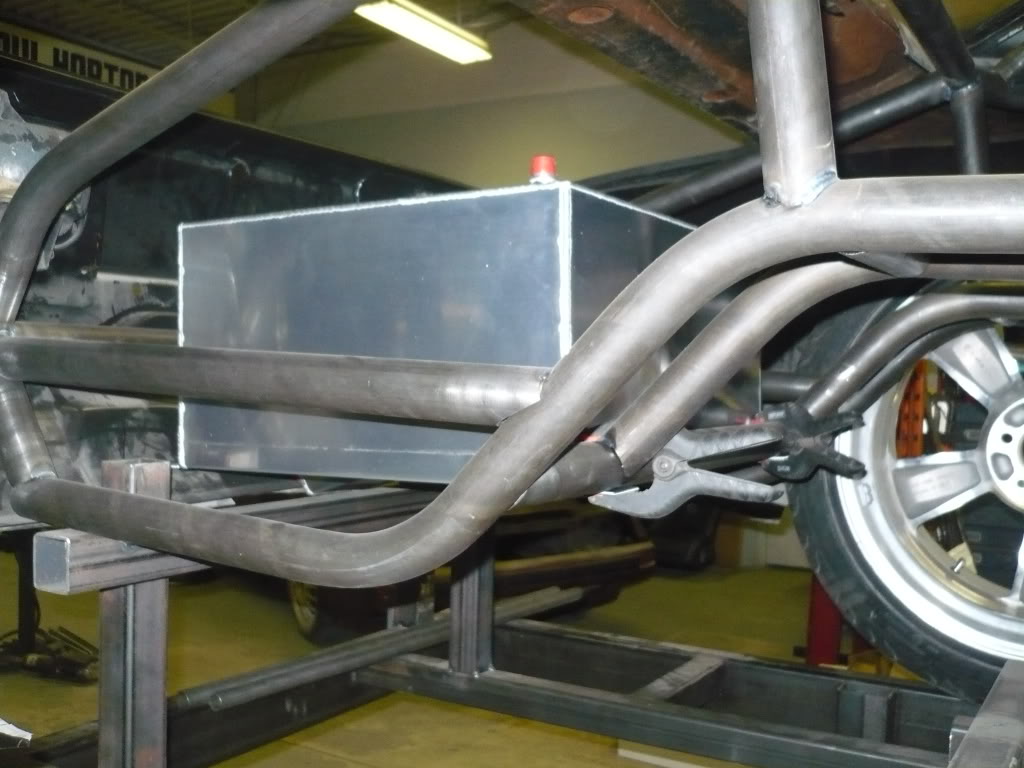

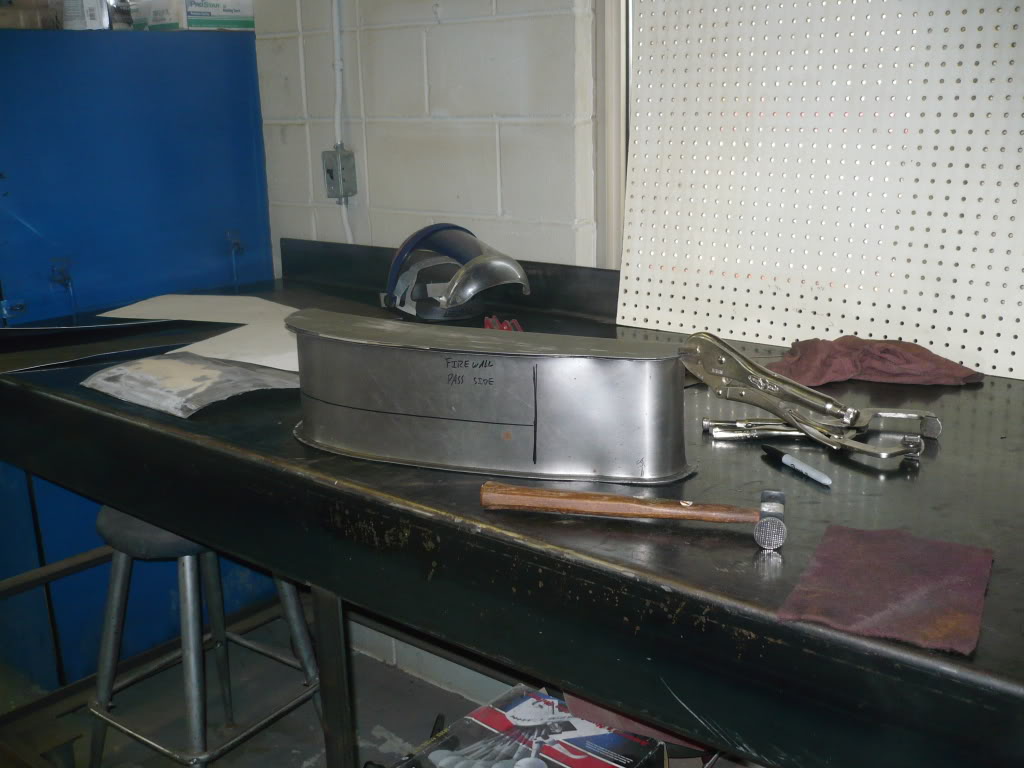

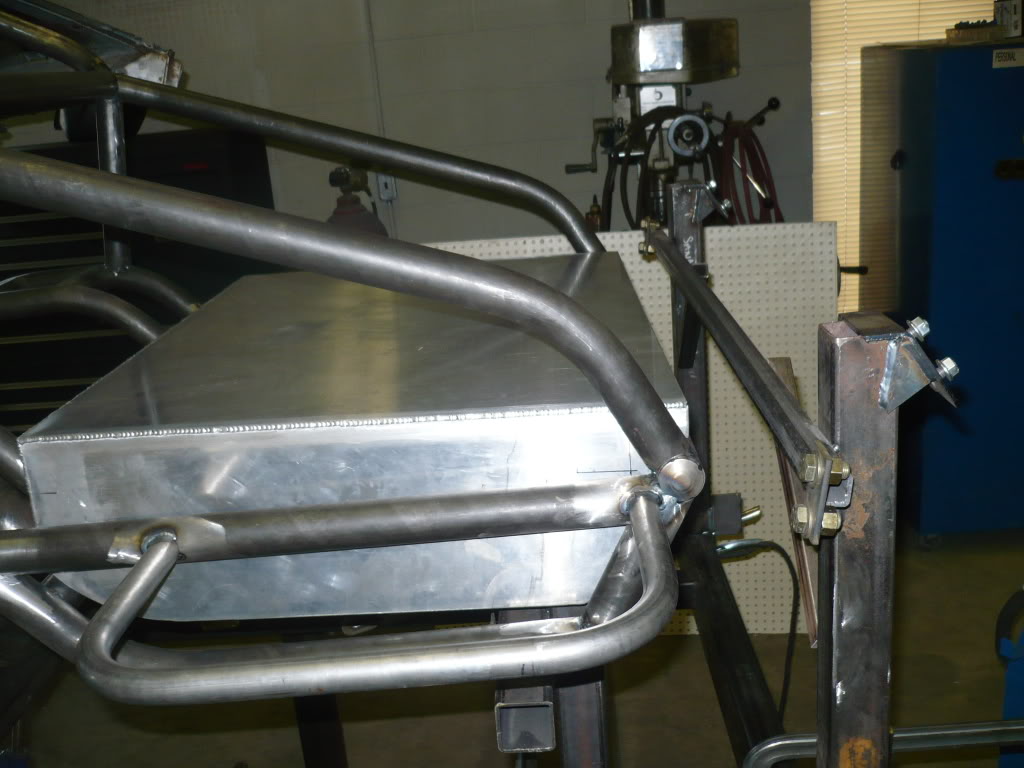

The start of the custom fuel cell, We got one from summit racing but it just did workout how we were planing on plus Chris didn't like it to much so were building a new one.

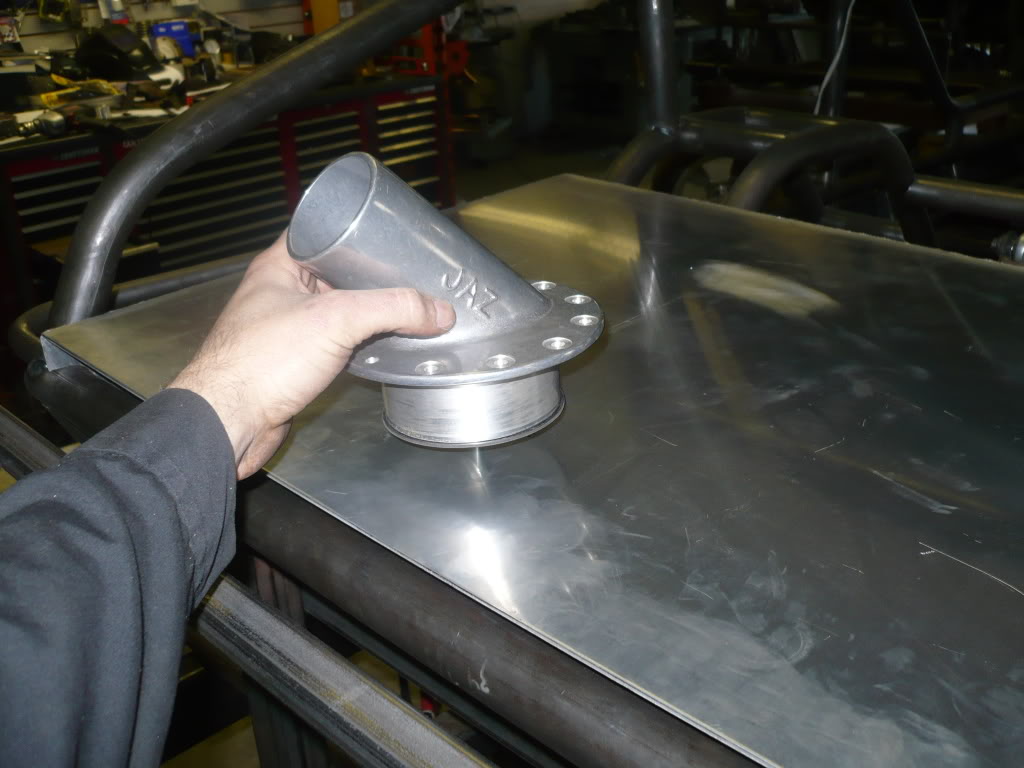

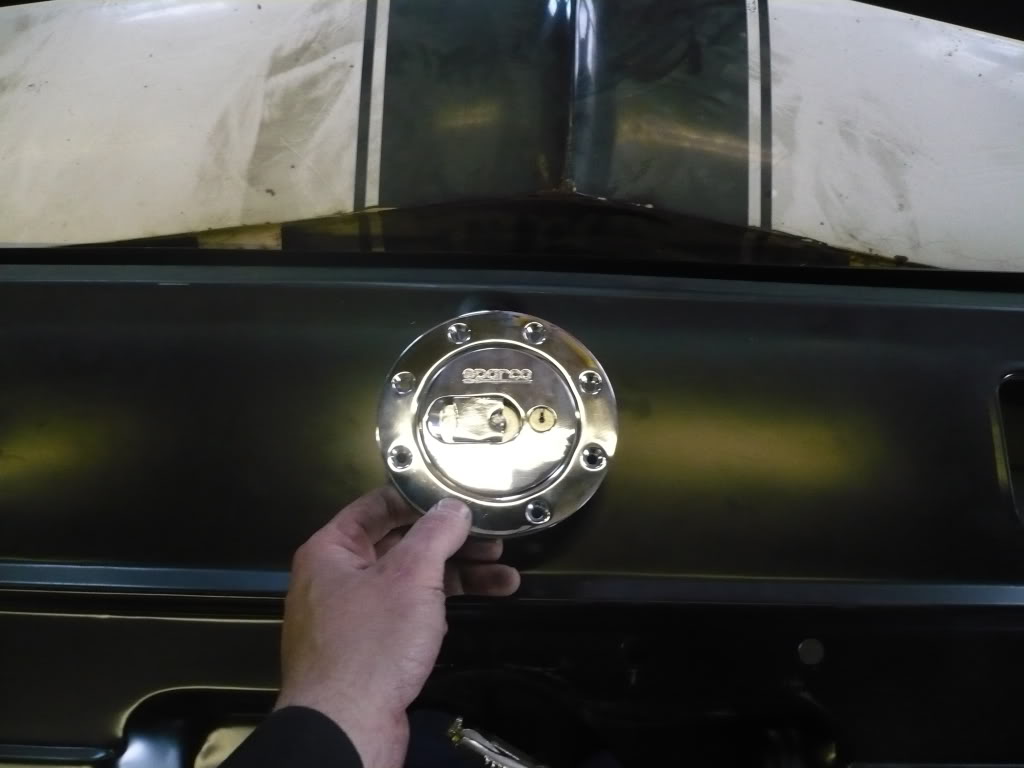

The filler will be on the tail panel but the sparco logo will be welded over to make it look clean and it will be powdercoated satin black.

2TONE_93GT

iTrader: (3)

Amazing progress!

100gs is EASY to spend on a car built right. Its easy to go fast on the cheap, but it doesnt last. But to build a nice car bumper to bumper with all the nice toys it sure does start to add up.

35k on paint is nuts!
