Lights Flicker
11-20-2004, 11:06 AM
#32
GTcars - Post God !
Join Date: Sep 2003
Location: Macomb, Michigan
Posts: 6,032
Rep Power: 877
Originally Posted by 2k2 camaro
11-21-2004, 10:06 PM
#36
GTcars - Post God !
Join Date: Apr 2004
Location: Saraland AL
Posts: 15,868
Rep Power: 1051
Originally Posted by 2k2 camaro
How do you install a cap?
11-21-2004, 10:09 PM
#37
GTcars - Post God !
Thread Starter
Join Date: Oct 2004
Location: indiana
Posts: 3,781
Rep Power: 791
Originally Posted by archemedes
hoo a wire from the battery to the + cable on the cap, another cable from the - to ground, a line from the + cable to the amp fuse block (you do have a fuse in the back don't you) and a remote line to the spot for that (if an led cap) when charging be sure to use the supplied resistor
11-21-2004, 10:16 PM
#38
GTcars - Post God !
Join Date: Apr 2004
Location: Saraland AL
Posts: 15,868
Rep Power: 1051
take an 8 gauge wire from your battery hook that to the positve post on the cap, take another 8 gauge wire and go to the distribution block for your amps (from said positive cable) take another 8 gauge wire from the negative post to ground. if needed there will be a remote line use the one that turns on your amps
11-21-2004, 10:31 PM
#41
GTcars - Post God !
Join Date: Apr 2004
Location: Saraland AL
Posts: 15,868
Rep Power: 1051
this will give a basic idea
http://www.autosound2000.com/gallery...tor_wiring.htm
http://www.autosound2000.com/gallery...tor_wiring.htm
11-21-2004, 11:54 PM
#44
GTcars - Post God !
Join Date: Sep 2003
Location: Macomb, Michigan
Posts: 6,032
Rep Power: 877
Hmm, I should be getting it tomorrow (hopefully). Looking at the diagram and your explanation, Arch, couldn't I just splice the cap into the power wires that are already running to the amp?
I have my negative wire grounded locally by the rear quarter panel.

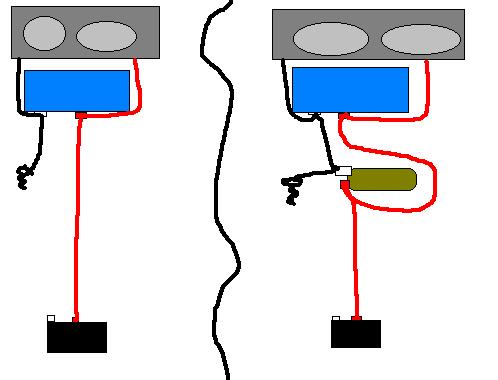

Before & After:
I have my negative wire grounded locally by the rear quarter panel.
Before & After:
