BLACK ICE

Yesterday I switched over from shorty headers to full length headers (pain in the *** dont do it unless you have a full afternoon and are totaly sure you need them) and while I was pulling the plugs and wires I noticed that the firing order was not correct. I did not do the firing order on the car originaly and trusted the guy who did it. So I put the firing order the way it should be and now it wont start and of course I didnt write down the one it had because it wasnt right. My question is are there any alternate firing orders for non LT1-LS1 small block chevys and will the wrong order damage my motor? I know crane sells a cam that switches 4 and 7 around but I am scared to try switching 4 and 7 on mine in case it can cause damage.

Ps I have a stock ZZ4 crate motor no mods yet

archemedes

it won't hurt anything. Is it popping through the carb? If so your off 180 degrees.

JesasaurusRex

chances are you don't have teh 4/7 swap

18436572

BLACK ICE

I got it fixed. I was talking to my buddy on the phone and he had me run down everything I did in detail and it turned out I had my wires going counter clockwise instead of clockwise on the distributer. lol. I guess I was too frustrated and tired after doing the headers to think about wich way the wires go on the cap. O-yea full length really changes the sound of the car over shortys. It sounds so much meaner now!

camaro per4mer

i had to pull my motor to put my full length headers in

JesasaurusRex

i want to see the exhaust system

blue89vert

i messed up my firing order when i put headers on the vert. easy fix

BLACK ICE

Yea I had my motor halfway out. I do not have full exhaust yet but I will be running full length hedmans, hedman universal x-tensions, 2 1/2 pipe, thrush turbo mufflers, and turndowns. I will post pics when I am done.

Grey- yea its an easy thing to mess up

blue89vert

but also easy to fix if you have a chiltons or w/e its called

JesasaurusRex

i wanna see how well you routed it, its a lot easier on paper

BLACK ICE

K Ill see if I can find the pics I am modeling it from.

BLACK ICE

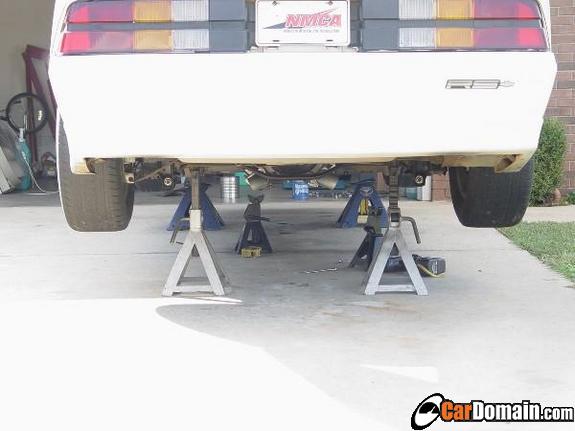

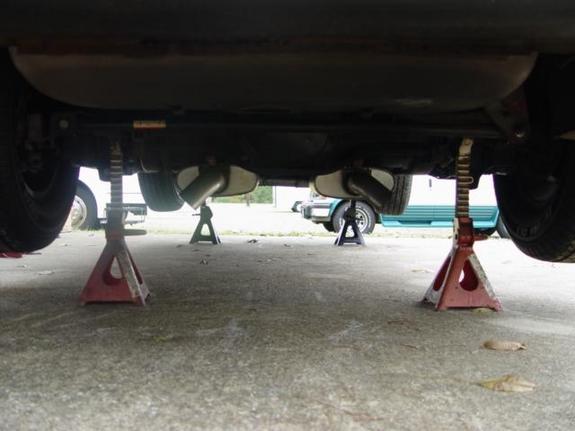

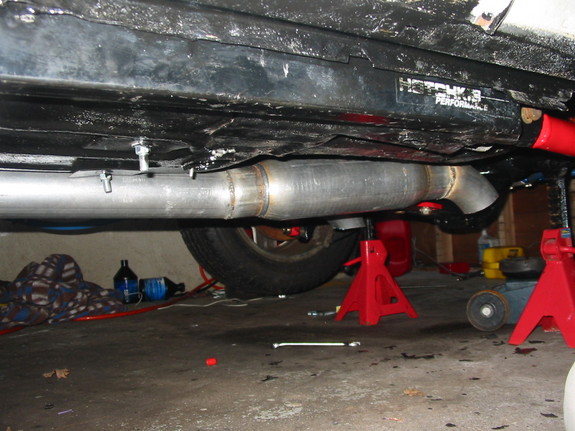

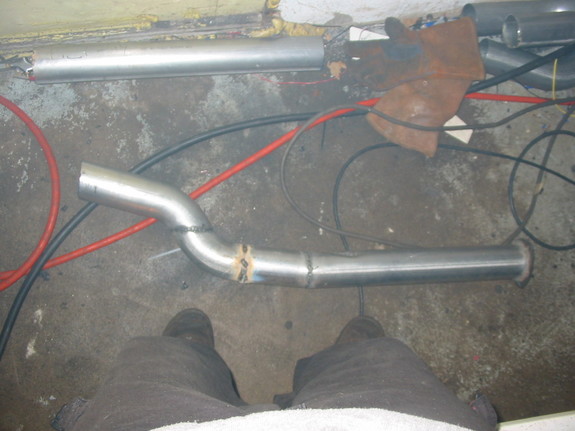

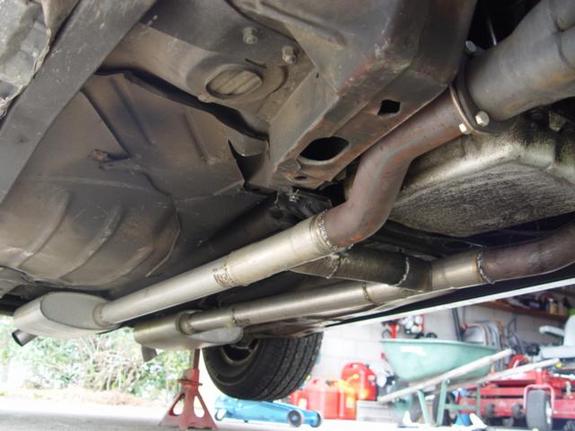

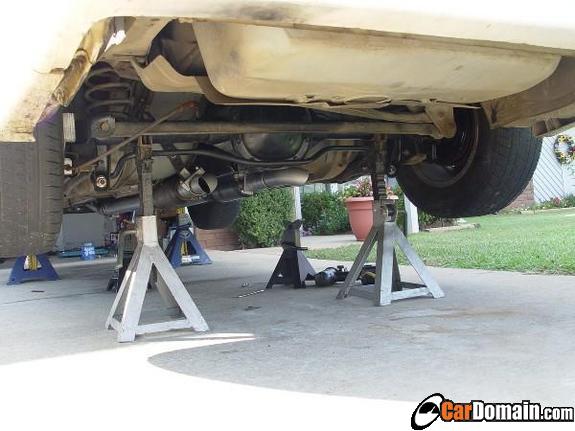

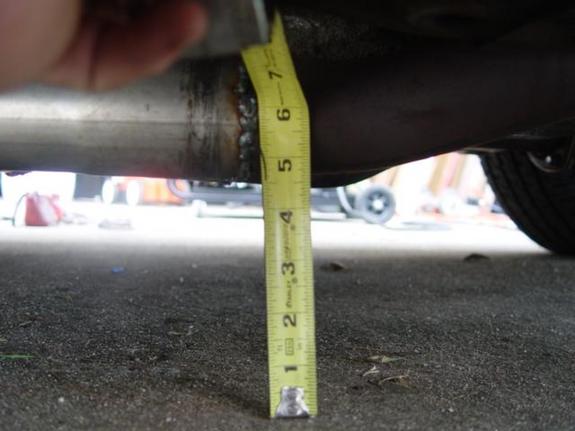

here are the pics I am making mine from very simple with like 4'' of ground clearence at its lowest point. the pics have bullet mufflers in some and dynomax super turbos in others he changed them cause the bullets were too loud.

JesasaurusRex

i've seen that guy on tgo before, and i've seen that set up already. What im saying is, while yes you can go under the x member it still bottoms out (ive done it, dual 3") now ontop of that i have the spohn x member and theres no way what so ever. Do show pics when you're done. Good luck

BLACK ICE

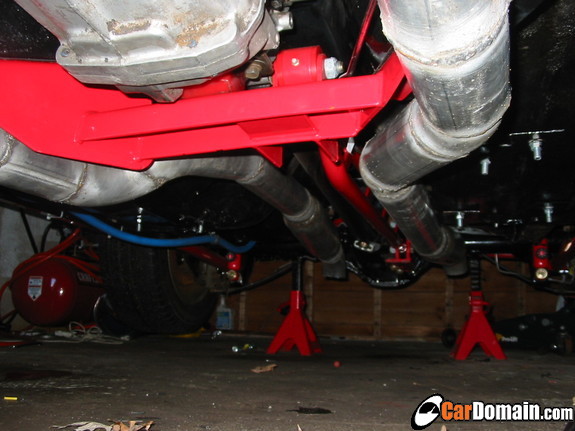

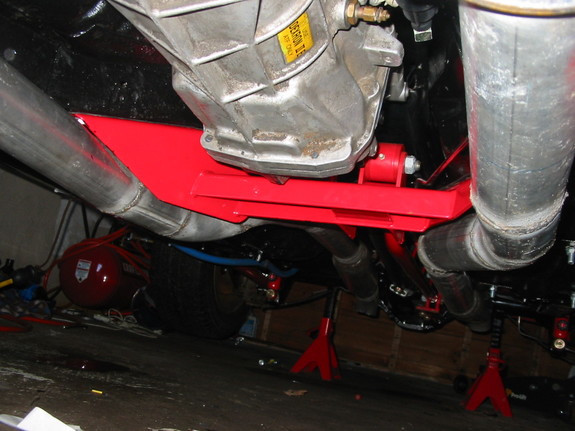

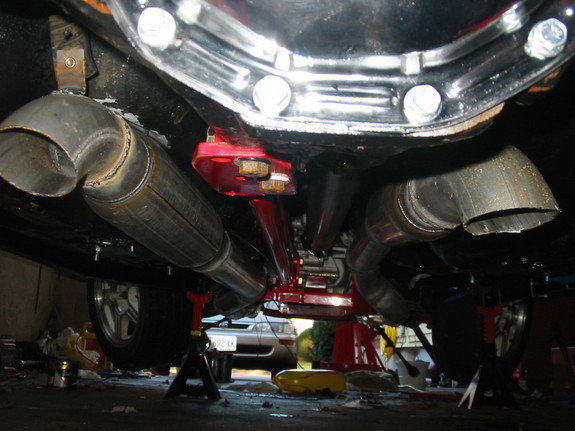

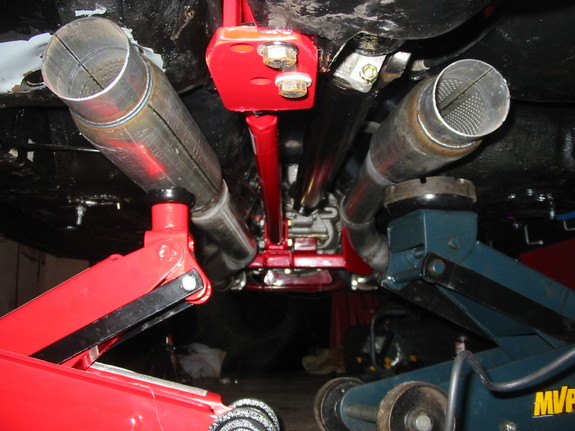

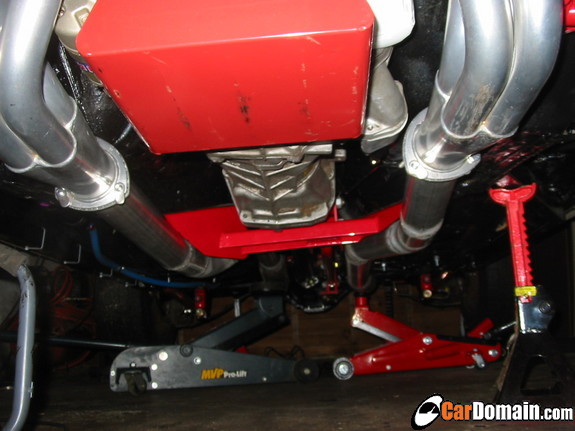

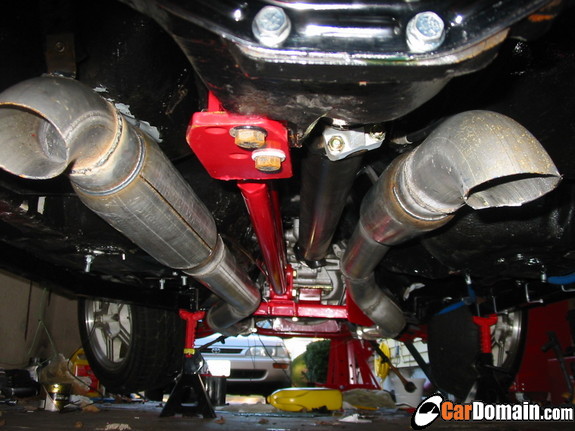

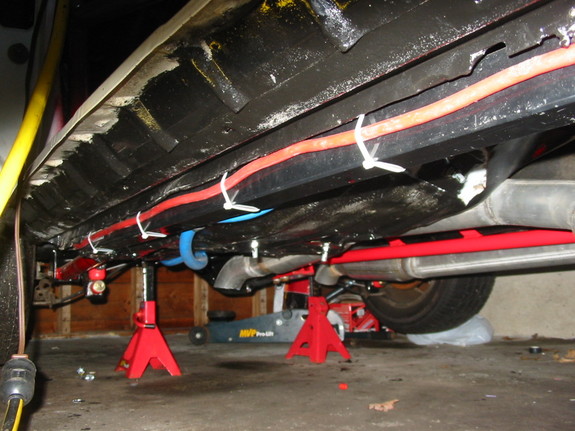

theres guy whos got that crossmember and true duals hold on Ill get the pics up in a minute...

BLACK ICE

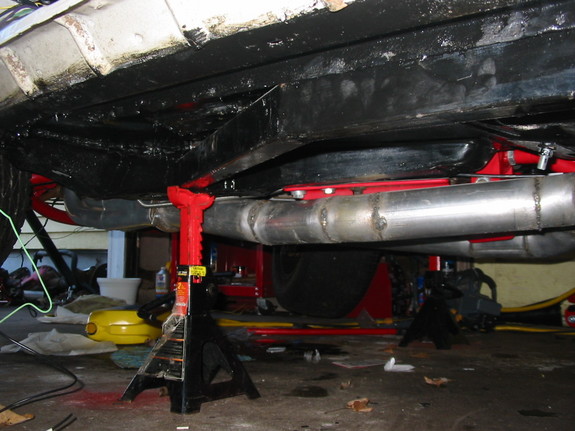

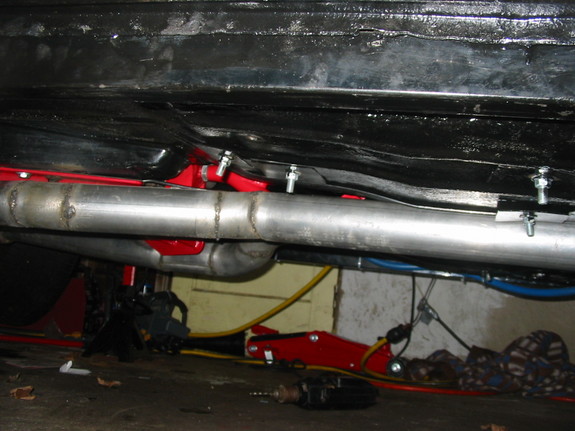

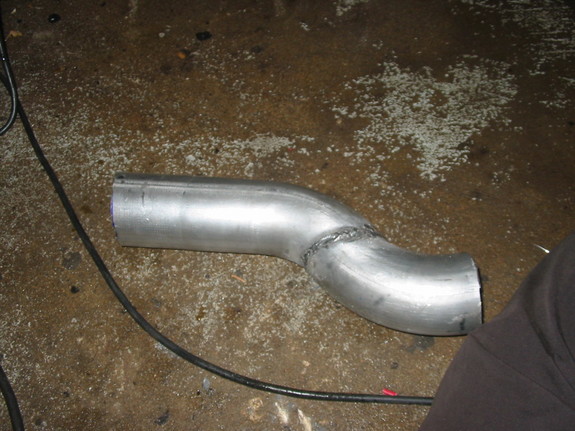

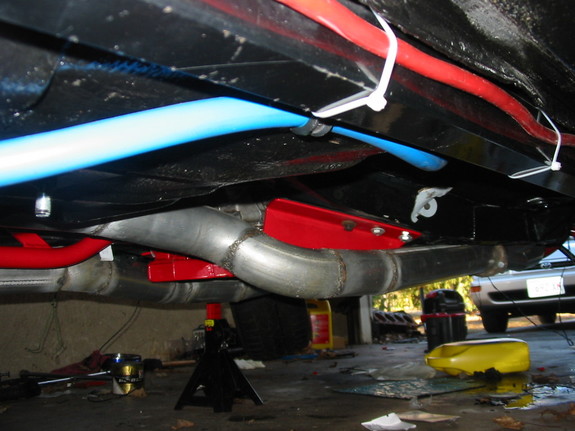

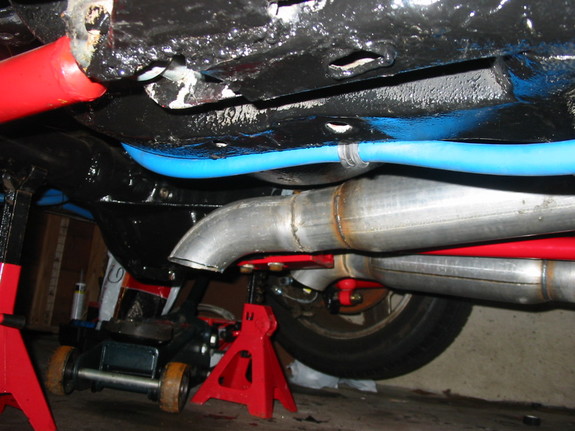

Ok the way he said he did it was by dimpling the pipes for clearance and he claims to have 4 1/2 inches at the lowest point...
