LS6 Manifold Swap Part 1!!!
Well here is the proccess in order to take it apart and prep the new manifold to be put on. From a stock LS1 intake manifold to an LS6 intake manifold, EGR Delete, Coolant Pipe Revision etc!

Part one, Start unbolting !

Part Two, take of off fuel rail cover and vaccuum lines and more ...

Part Three, take a break, cause you dont want to break poor ol' oil pressure sending unit!

Part 4, Show off the Z06 intake manifold that you custom painted high gloss 500 degree ceramic paint w/ clear coat and make fun of how the old one looks plain!

Part 5, about to go to sleep and finish this tomorrow!!!!

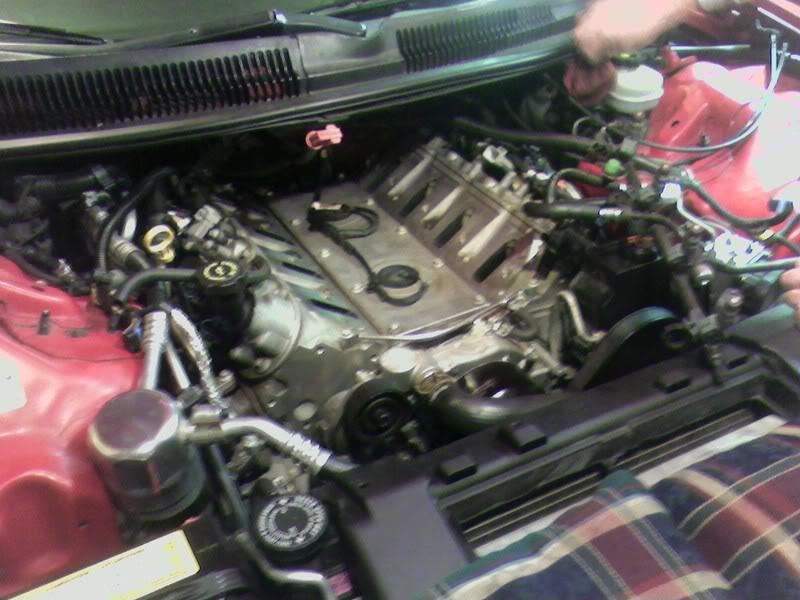

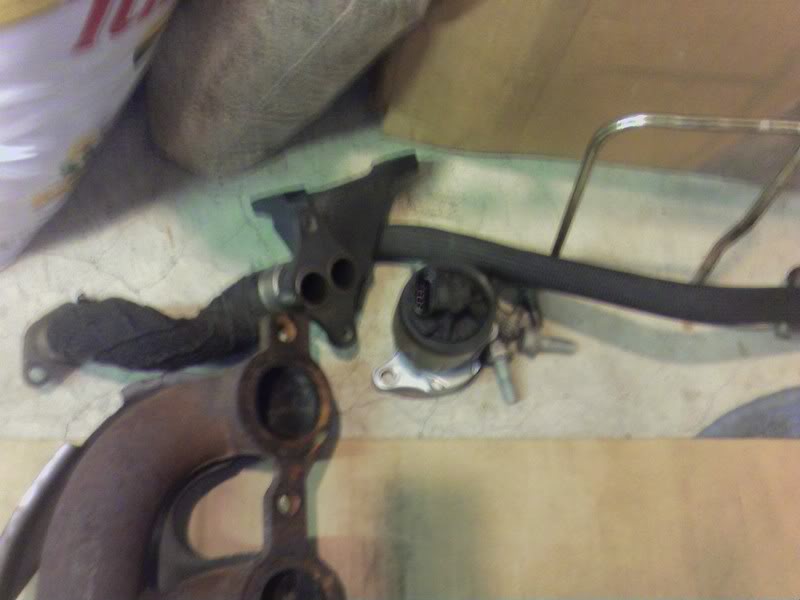

Name: SSPX0168.jpg Views: 5 Size: 39.9 KB

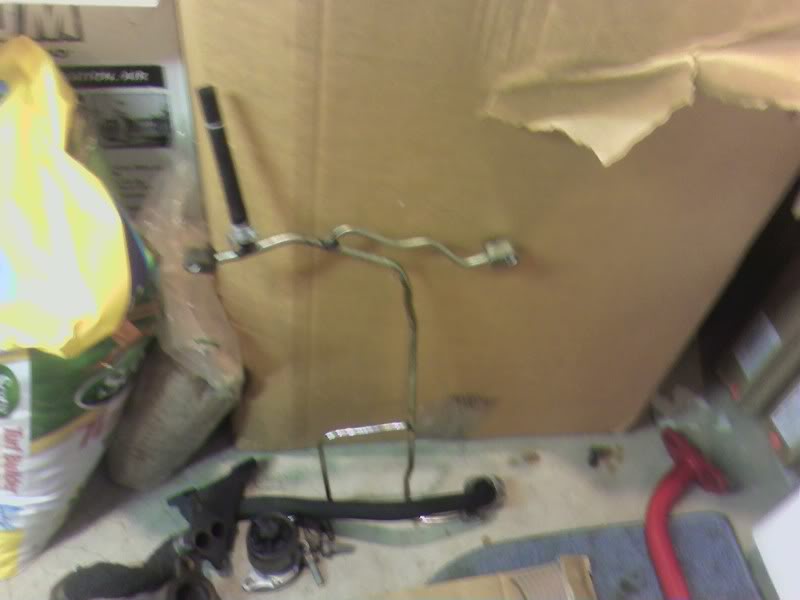

Name: SSPX0167.jpg Views: 6 Size: 35.0 KB

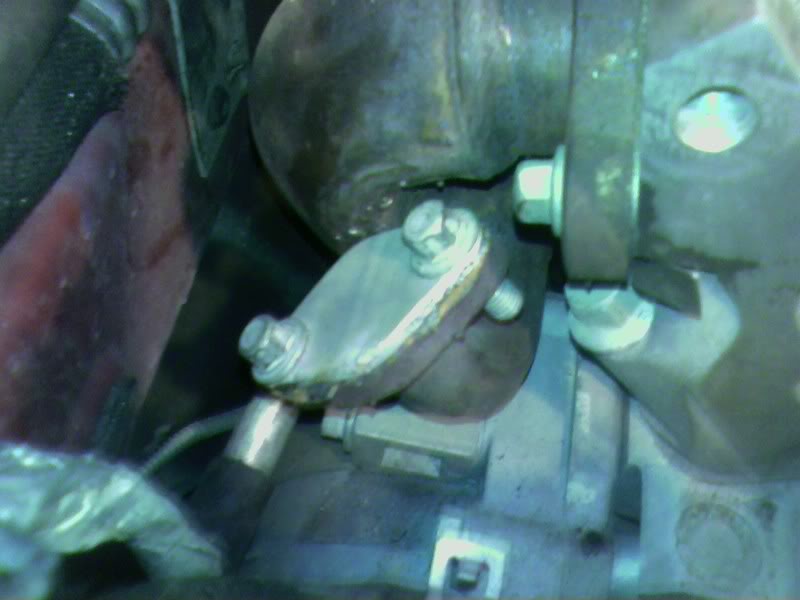

Name: SSPX0166-1.jpg Views: 4 Size: 46.5 KB

Name: SSPX0165-1.jpg Views: 5 Size: 42.5 KB

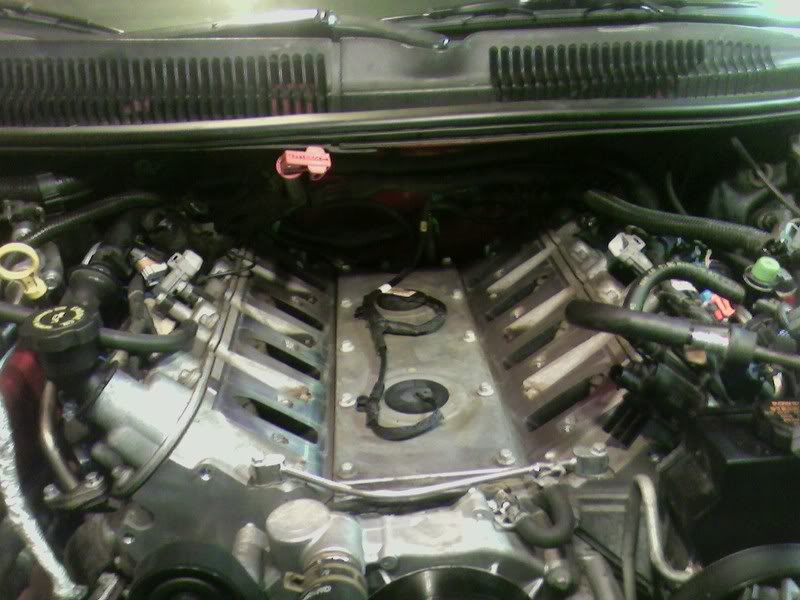

Name: SSPX0164.jpg Views: 5 Size: 72.0 KB

Name: SSPX0163.jpg Views: 4 Size: 76.2 KB

Ported TB!

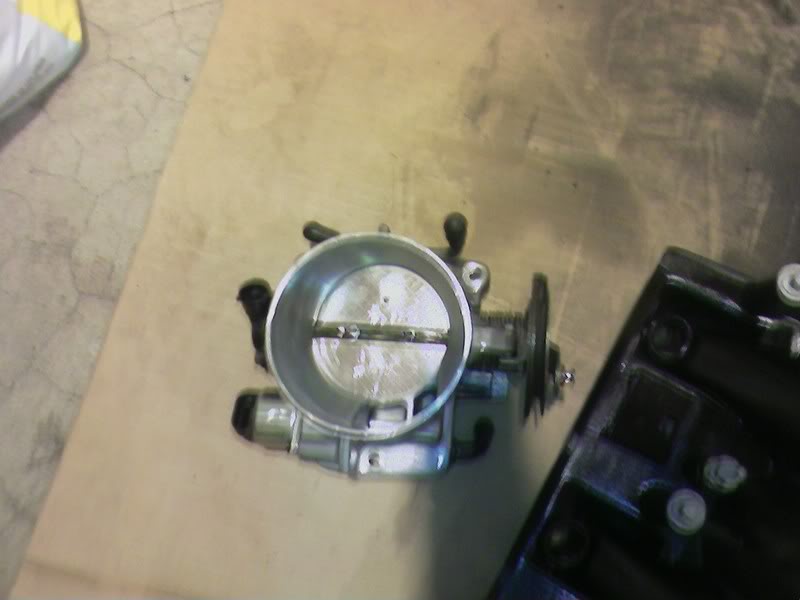

Name: SSPX0162.jpg Views: 5 Size: 36.6 KB

Old Manifold!

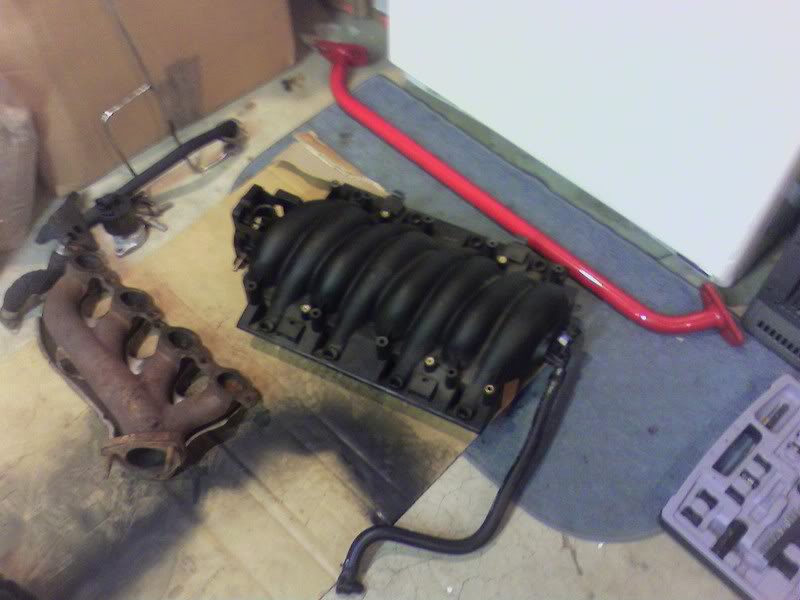

Name: SSPX0160.jpg Views: 4 Size: 49.7 KB

New Manifold Before!

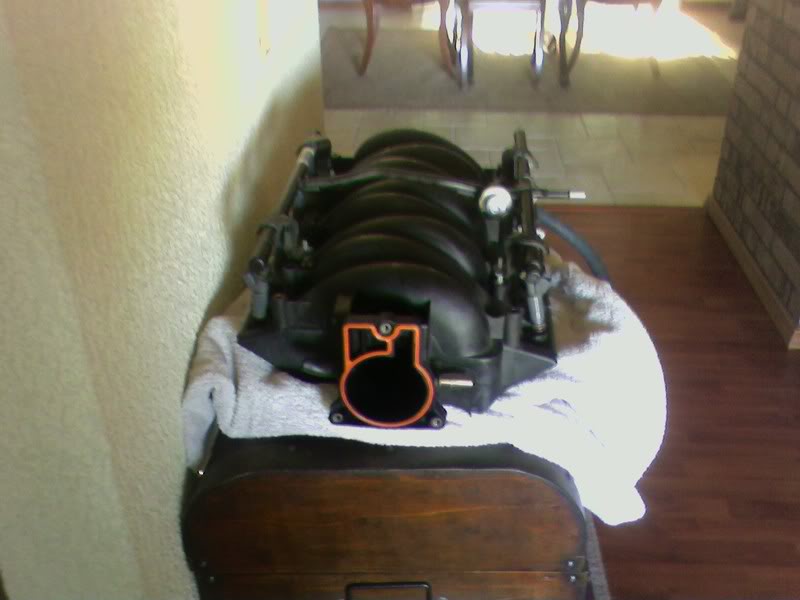

Name: SSPX0133.jpg Views: 5 Size: 42.7 KB
